Hondata

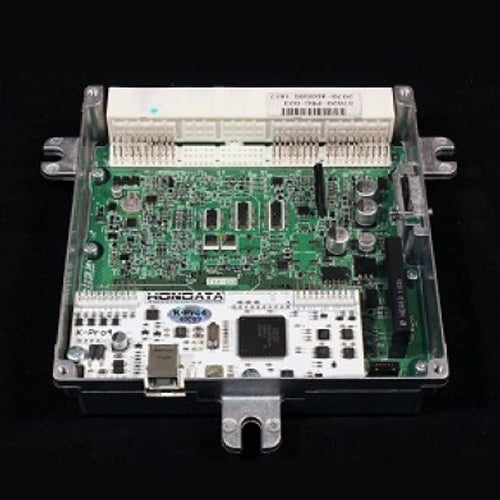

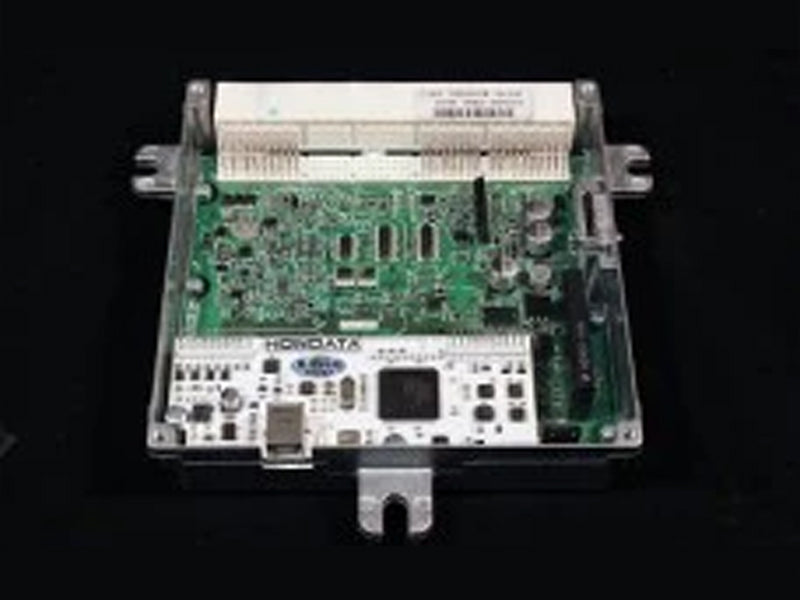

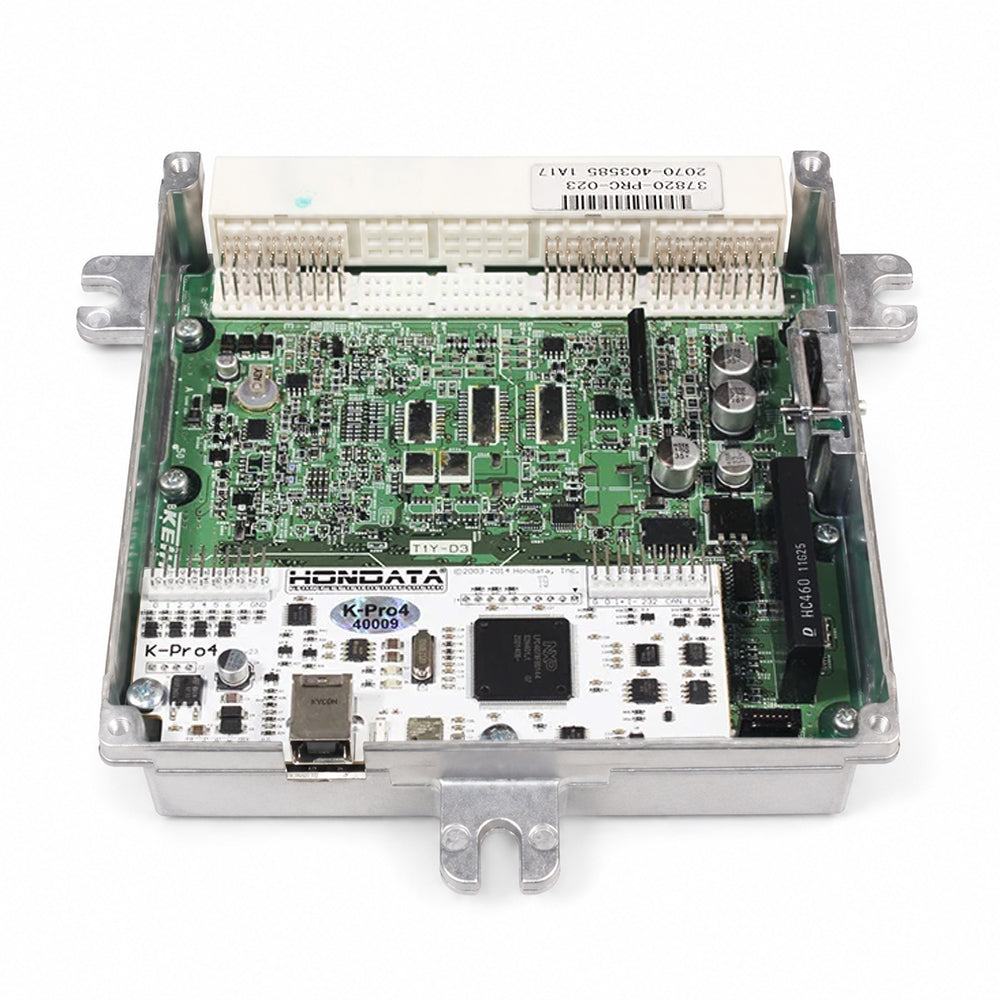

Hondata K-Pro V4 Board w/ Installation

Hondata K-Pro V4 Board w/ Installation

Regular price $790.00 USD
Regular price Sale price $790.00 USD
Sale Sold out
Shipping calculated at checkout.

Quantity

Upgrade your compatible Honda K-Series ECU with the Hondata K-Pro V4 programmable engine management system, professionally installed by EBTEC Automotive, an authorized Hondata dealer and installer.

This option includes a genuine Hondata K-Pro V4 board plus professional installation into your customer-supplied compatible ECU.

K-Pro gives tuners full control over fuel, ignition, VTEC, boost control, launch control, flex fuel, datalogging and other engine management functions through Hondata KManager software.

Includes genuine Hondata K-Pro V4 board and professional installation into your compatible ECU. Customer-supplied ECU required.

⸻

How the K-Pro Installation Service Works

  1. Order your Hondata KPro installation.
  2. Ship your compatible ECU to EBTEC with your order number.
  3. EBTEC installs the KPro board into your ECU.
  4. Your completed ECU is shipped back to you.

Please ship ECU to:
EBTEC
5012 Frank Aiken Rd.
Powder Springs, GA 30127
Include your order number on the box.

Note: The shipping you are paying is for return shipping of your ECU back to you!

⸻

The K-Series Programmable ECU (Hondata KPro) consists of a hardware modification to any K-Series ECU, plus KManager Windows software which allows you to re-program the ECU and datalog sensors.

KPro Features:

  • Fits inside the ECU
  • Designed and assembled in USA
  • USB connection for speed and compatibility
  • Hondata KManager Windows based software for parameter & table editing, calibration uploading and datalogging.
  • Many built in calibrations for common engine combinations
  • Built in datalogging to a laptop
  • On board datalogging memory (8 MB memory, 10-215 minutes datalogging)
  • Adjustment for different sized injectors, with overall fuel trim.
  • Configurable for any MAP sensor (to 5 Bar and above)
  • TPS based table lookup for ITBs
  • Engine protection from lean air fuel ratios, over boost and low oil/fuel pressure.
  • Expanded fuel and ignition tables, both in rpm and load, to 60 lbs boost and 11,000 rpm (these are not the upper limits)
  • Launch control with anti-lag
  • Three multi purpose outputs for nitrous control or similar.
  • Supports lambda tracing from the stock wideband o2 or aftermarket wideband.
  • PWM output for boost control
  • Bluetooth support and Hondata Mobile app.
  • Ethanol sensor input for flex fuel capability.
  • Alternate speed sensor input.
  • Dash output serial & CAN streams.
  • Live tuning and auto tune.

Compatible ECUs & Applications:

Hondata K-Pro V4 is compatible with a range of Honda/Acura K-Series ECU configurations. Some common compatible options include:

  • PND Automatic ECU
  • PRB ECU
  • PNF ECU
  • PND Manual ECU
  • PPA Manual ECU
  • PPA/PPL Automatic ECU

Compatibility can vary by ECU part number, transmission, wiring and vehicle configuration.

If you're unsure whether your ECU is compatible, or you have questions about which K-Pro option is right for your setup, contact EBTEC with your ECU part number and vehicle information before ordering.

Need an ECU too? Complete K-Pro V4 ECU packages are also available.

⸻

Warning

Within the USA this product is legal only for racing vehicles which may never be used upon a public highway.

⸻

Authorized Hondata Dealer & K-Pro Certified Installer

Genuine Hondata hardware, professional ECU installation, and custom dyno tuning from our Atlanta-area facility. Authorized Dealer  |  K-Pro Certified Installer
