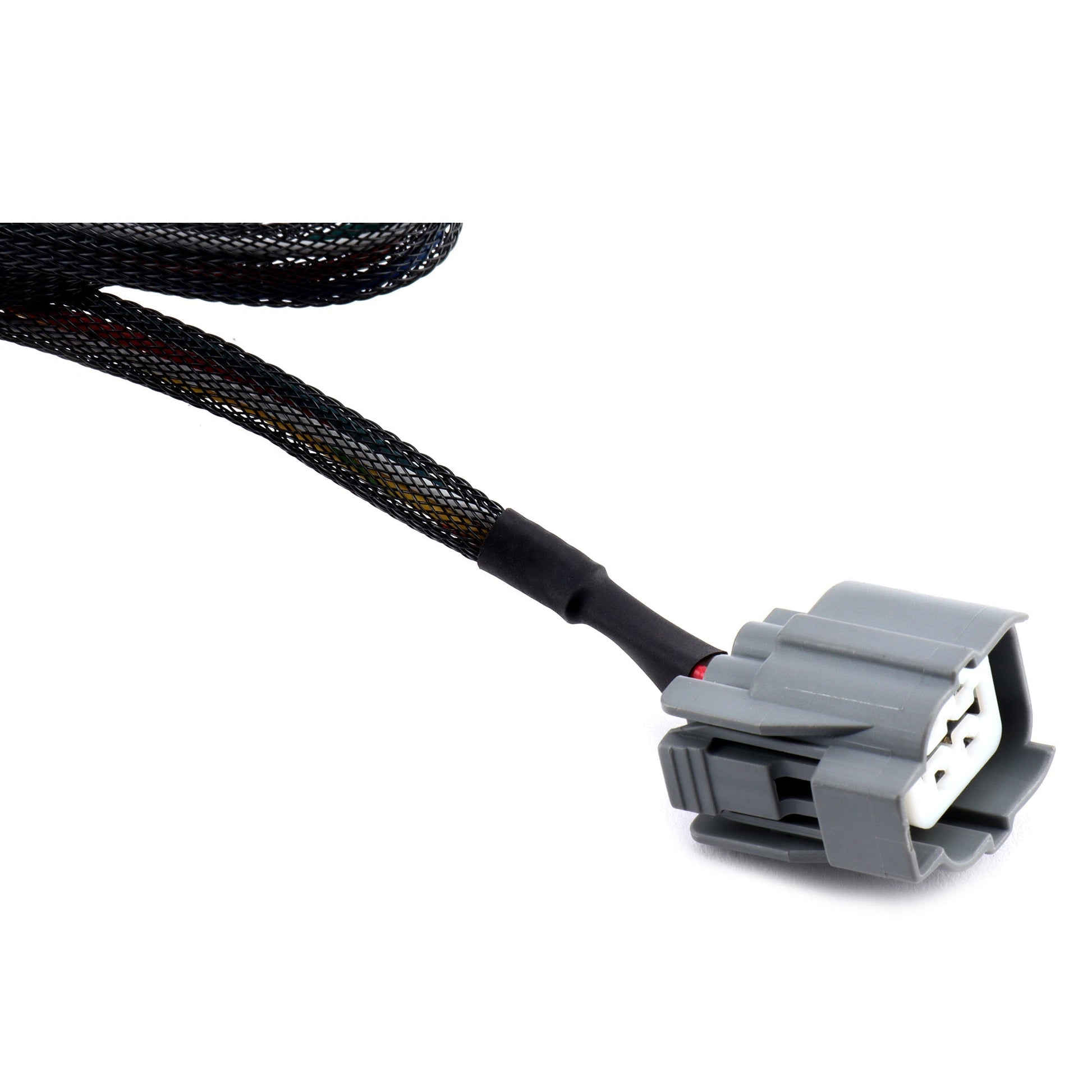

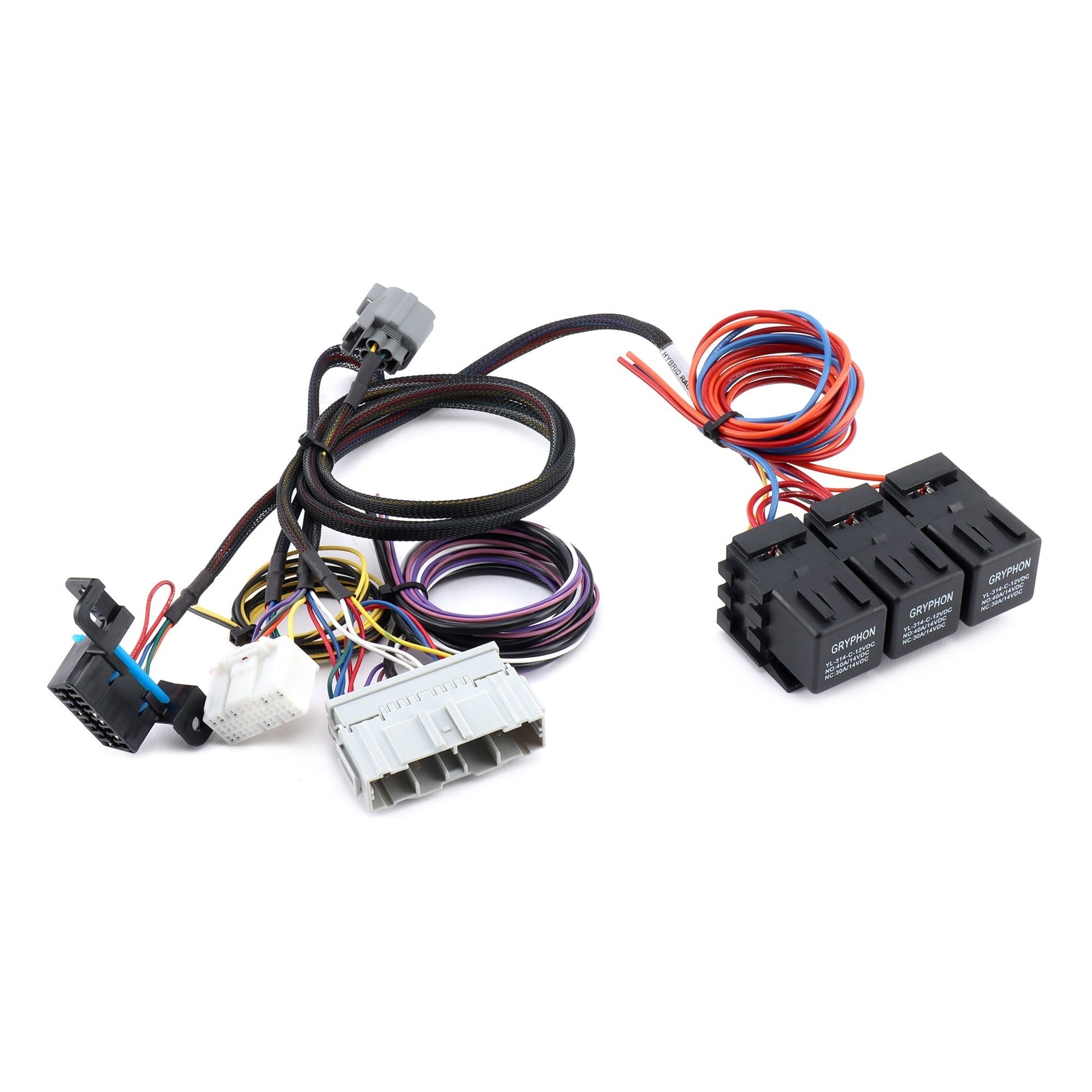

Connect a K-Series engine to a custom chassis with the Hybrid Racing Universal K-Series Swap Conversion Wiring Harness. Intended for builds without a chassis-specific conversion harness.
Designed for custom builds, this harness brings the engine ECU, power supplies, relays, and chassis signals together without requiring a standard Honda body harness. Labeled wiring and new connectors simplify tracing circuits, and the diagnostic port keeps access to engine information after the swap.
Features & specifications
For supported 2002–2004 USDM/JDM K20A, K20A2, and K20A3 engine harnesses and matching ECU

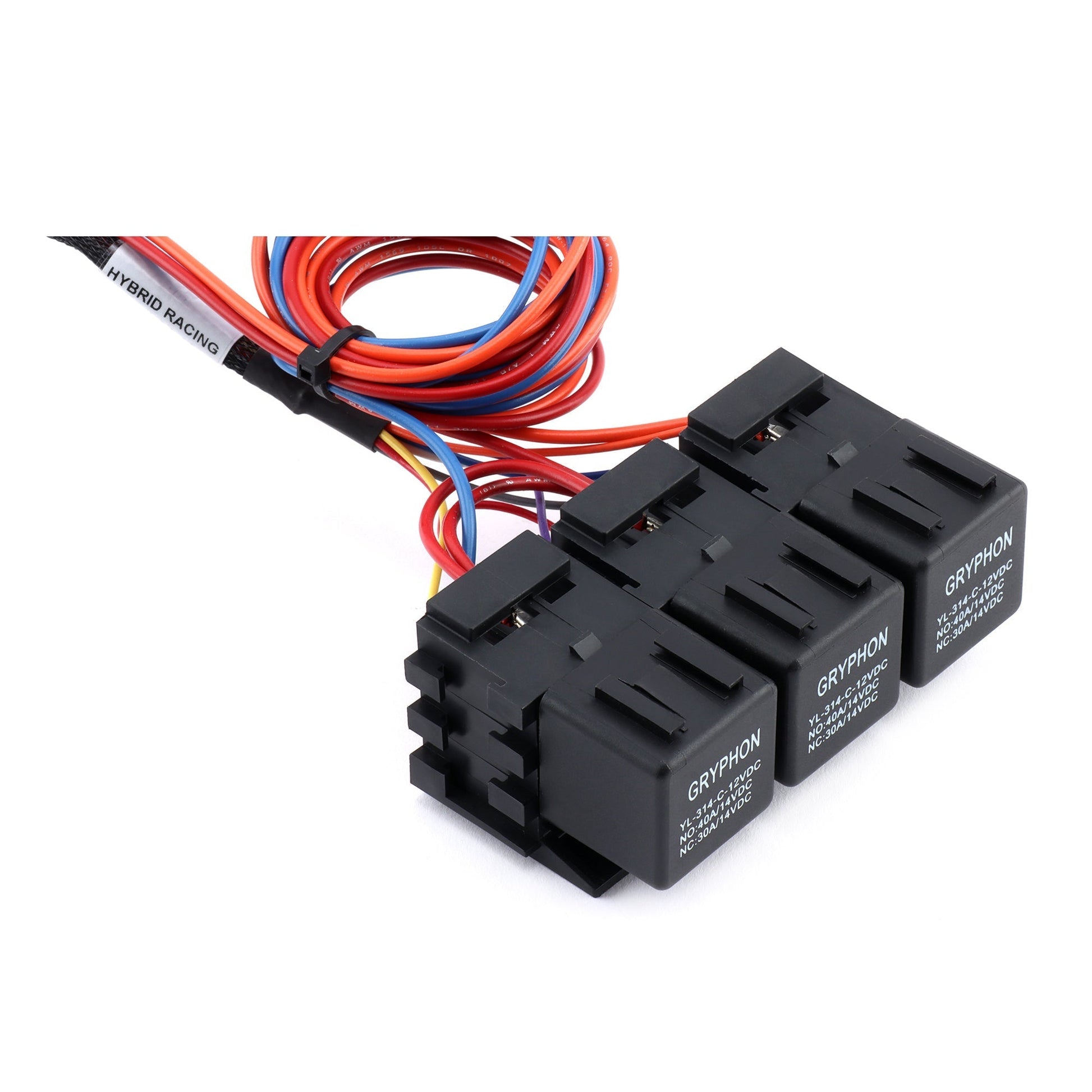

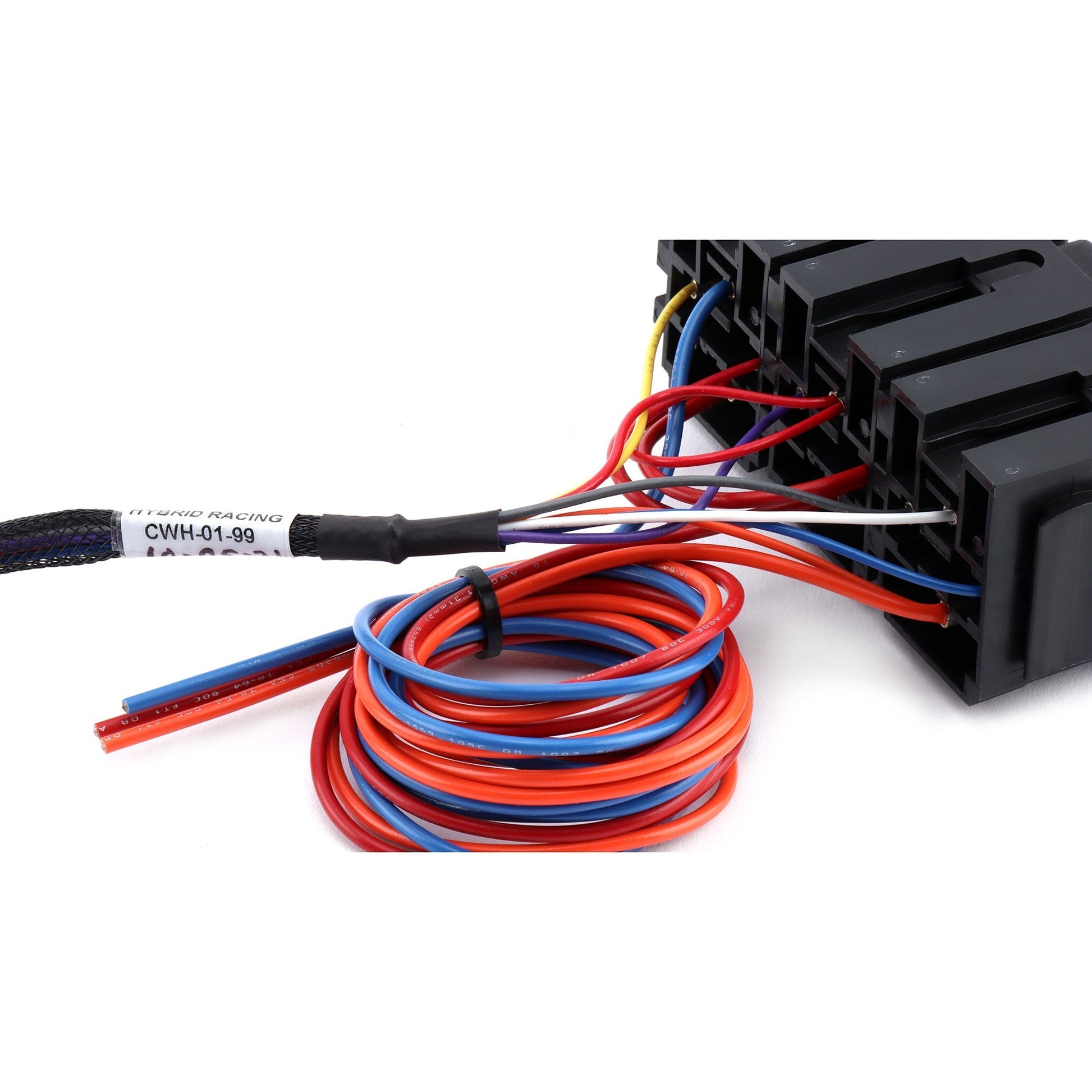

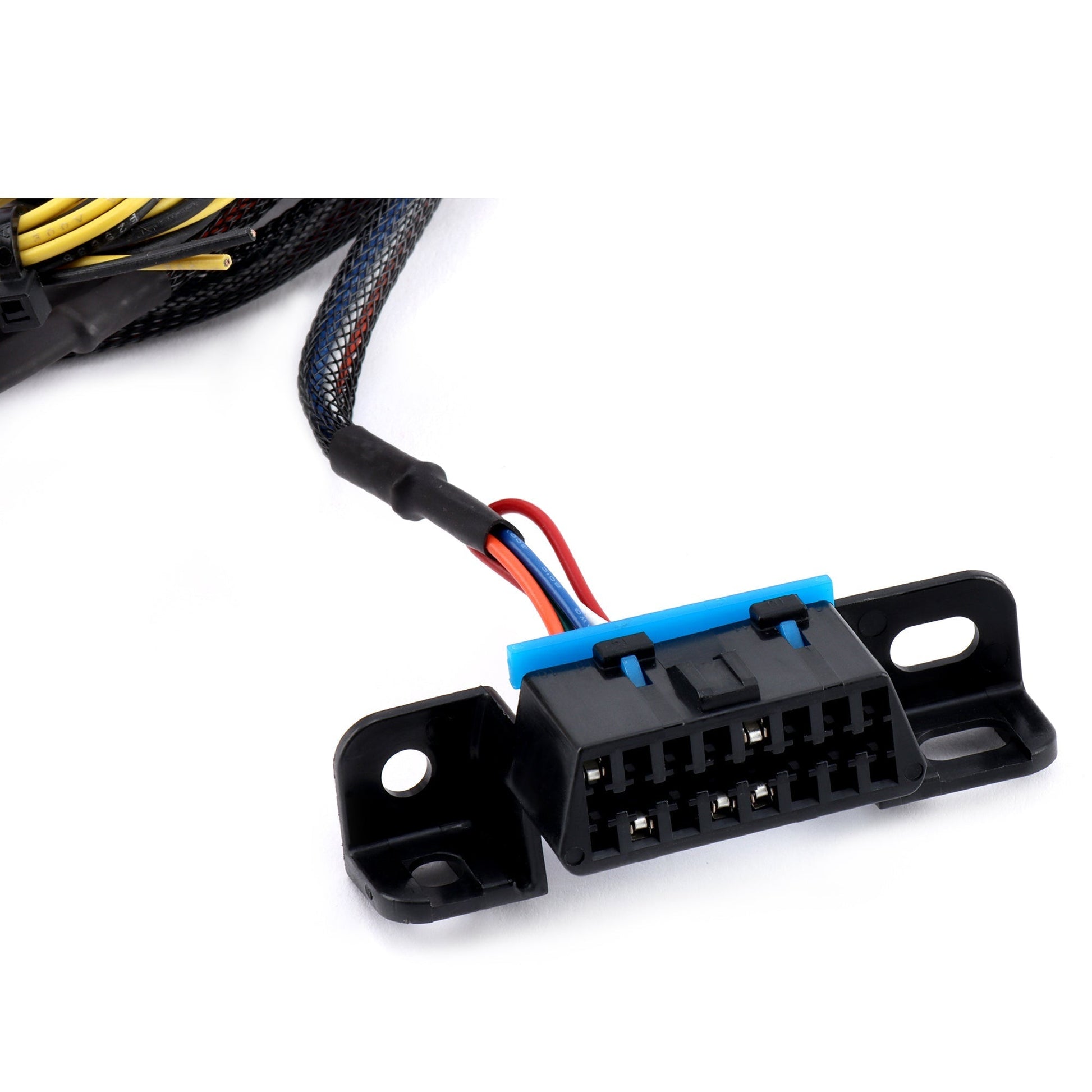

Includes fuel-pump, main, and primary oxygen-sensor relays, plus an OBD2 port
Outputs for tachometer, speedometer, oil-pressure warning, malfunction indicator, fan, fuel pump, and starter relay
Requires constant and switched 12V supplies

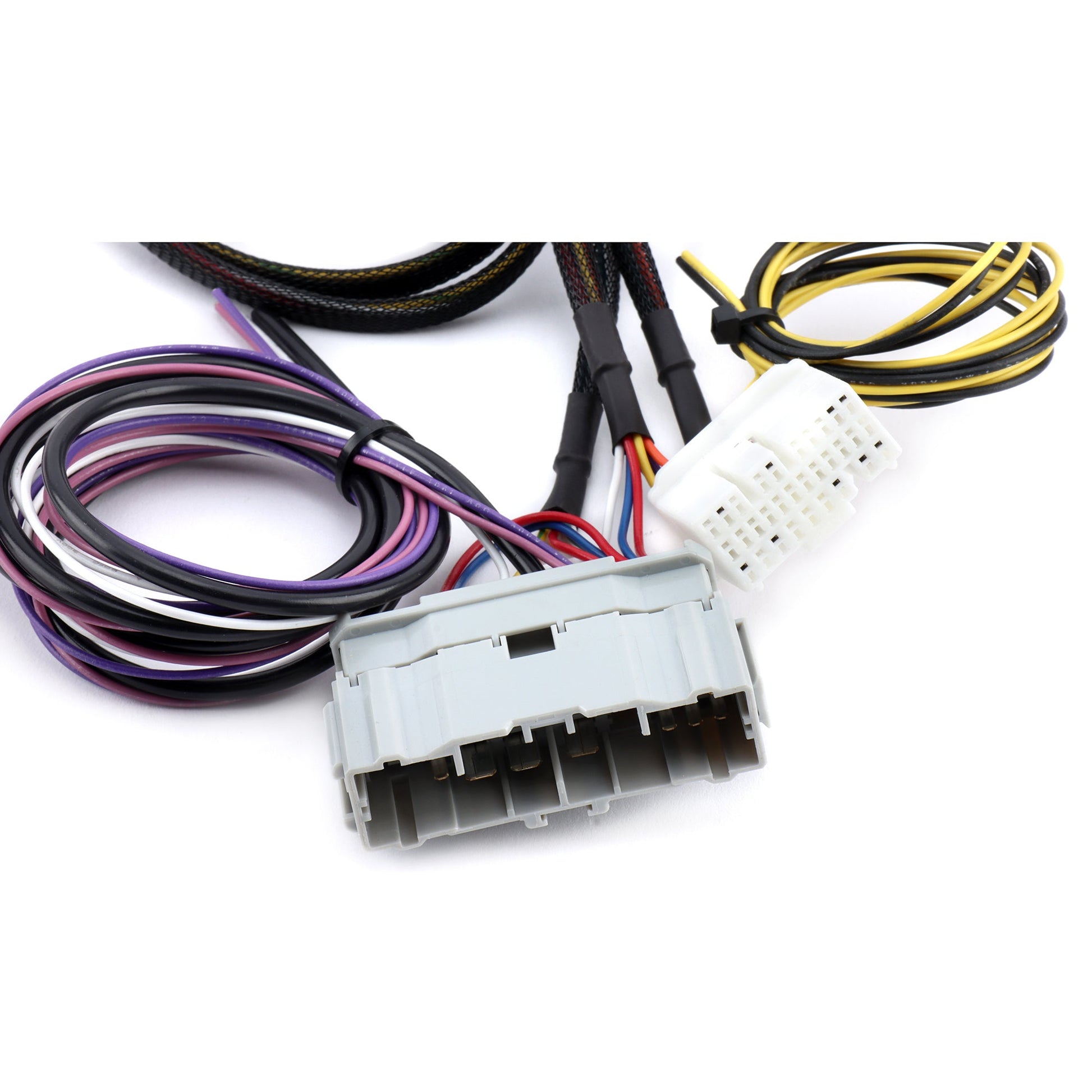

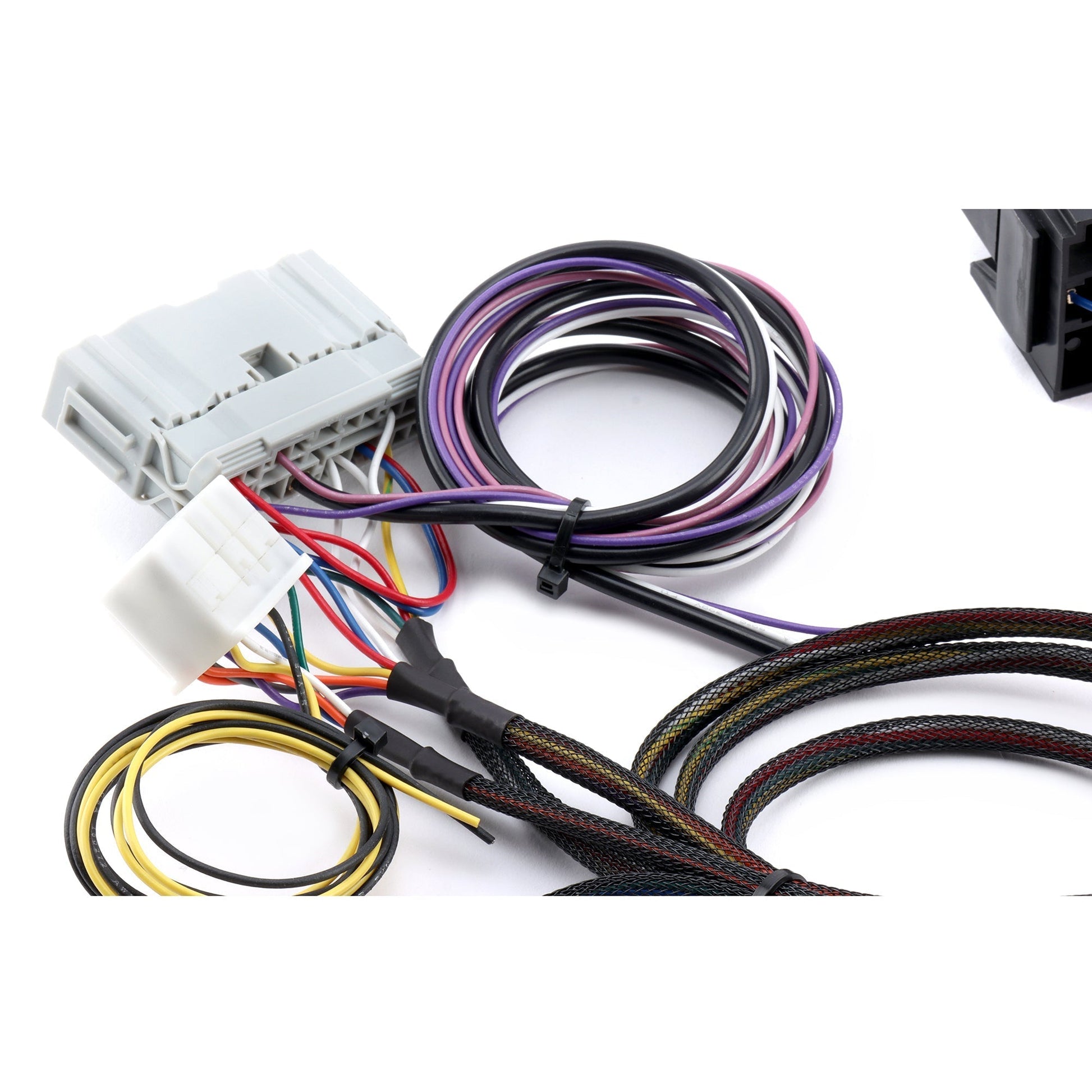

Factory-style connectors, terminals, and wire; no used connector core required
Provisions for the supported primary oxygen sensor
Manufacturer technical support for installation questions
Important notes
Requires constant and switched 12V supplies. Not compatible with 2005–2006 or K24 engine harnesses and ECUs. UKDM engine-harness applications require the oxygen-sensor wiring conversion described in the manufacturer’s instructions.
