Hybrid Racing K-Series Idler Bracket, Pulley & Belt Combo

Hybrid Racing K-Series Idler Bracket, Pulley & Belt Combo

Regular price $244.98 USD
Regular price Sale price $244.98 USD
Sale Sold out
Shipping calculated at checkout.

Engine
Crank Pulley Size
Quantity

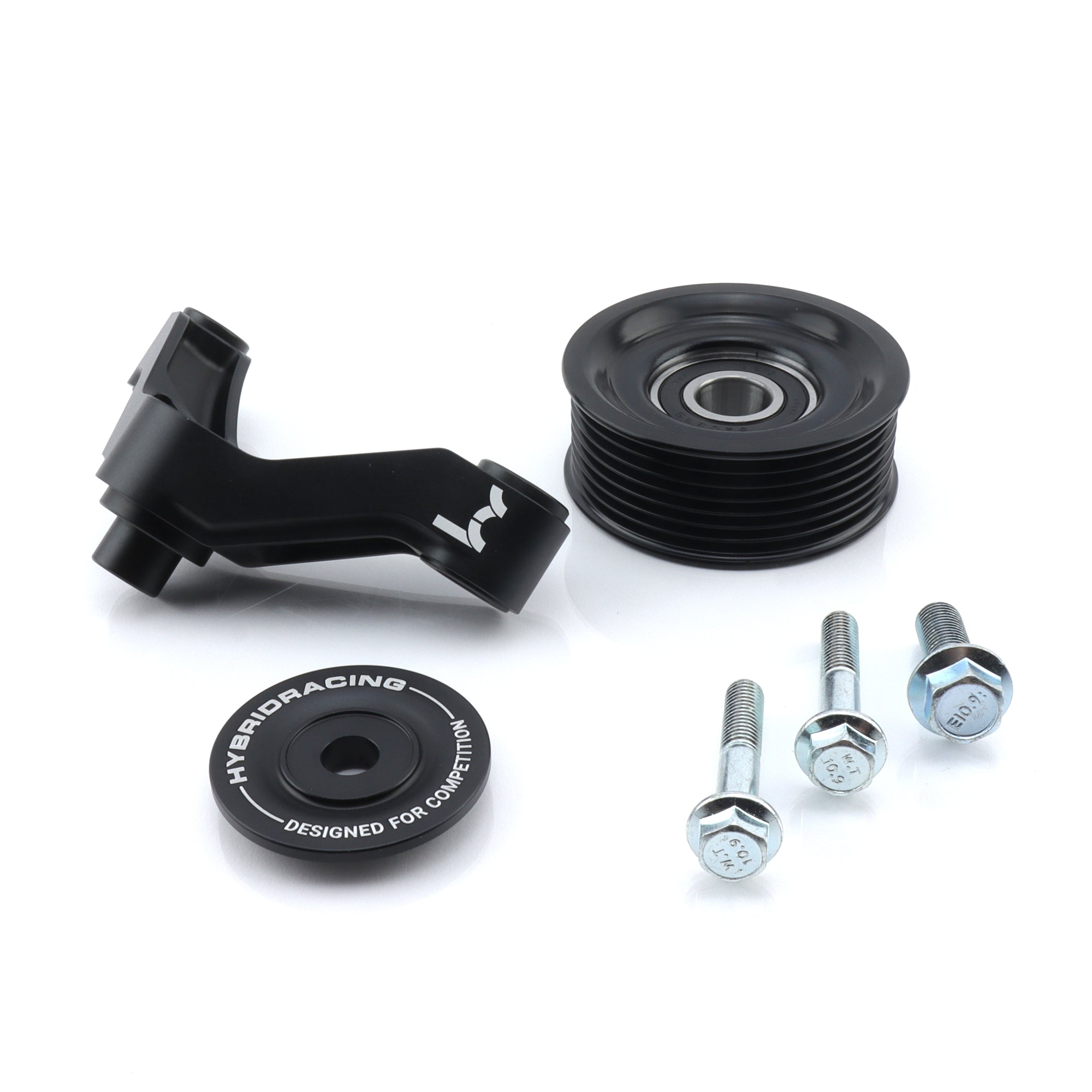

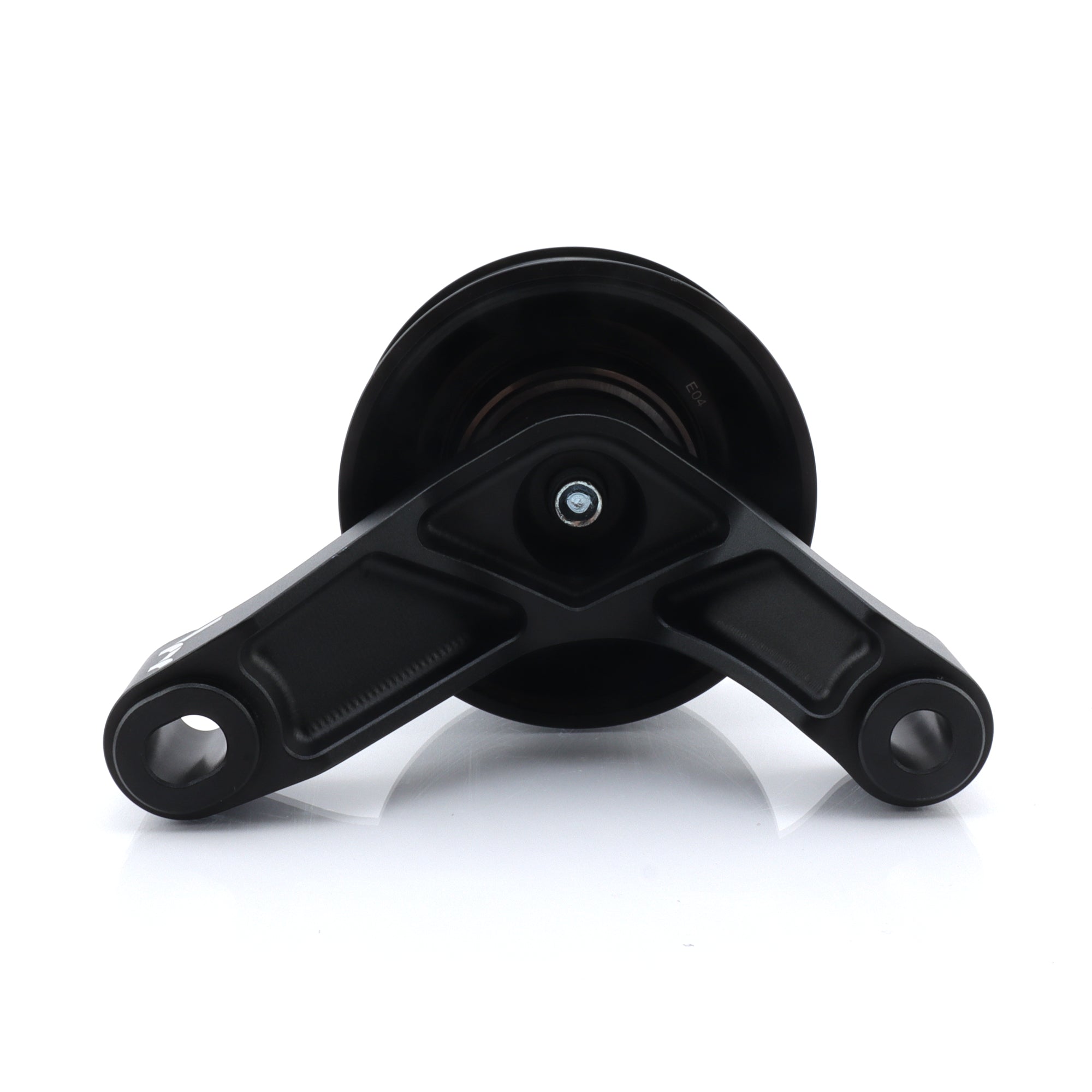

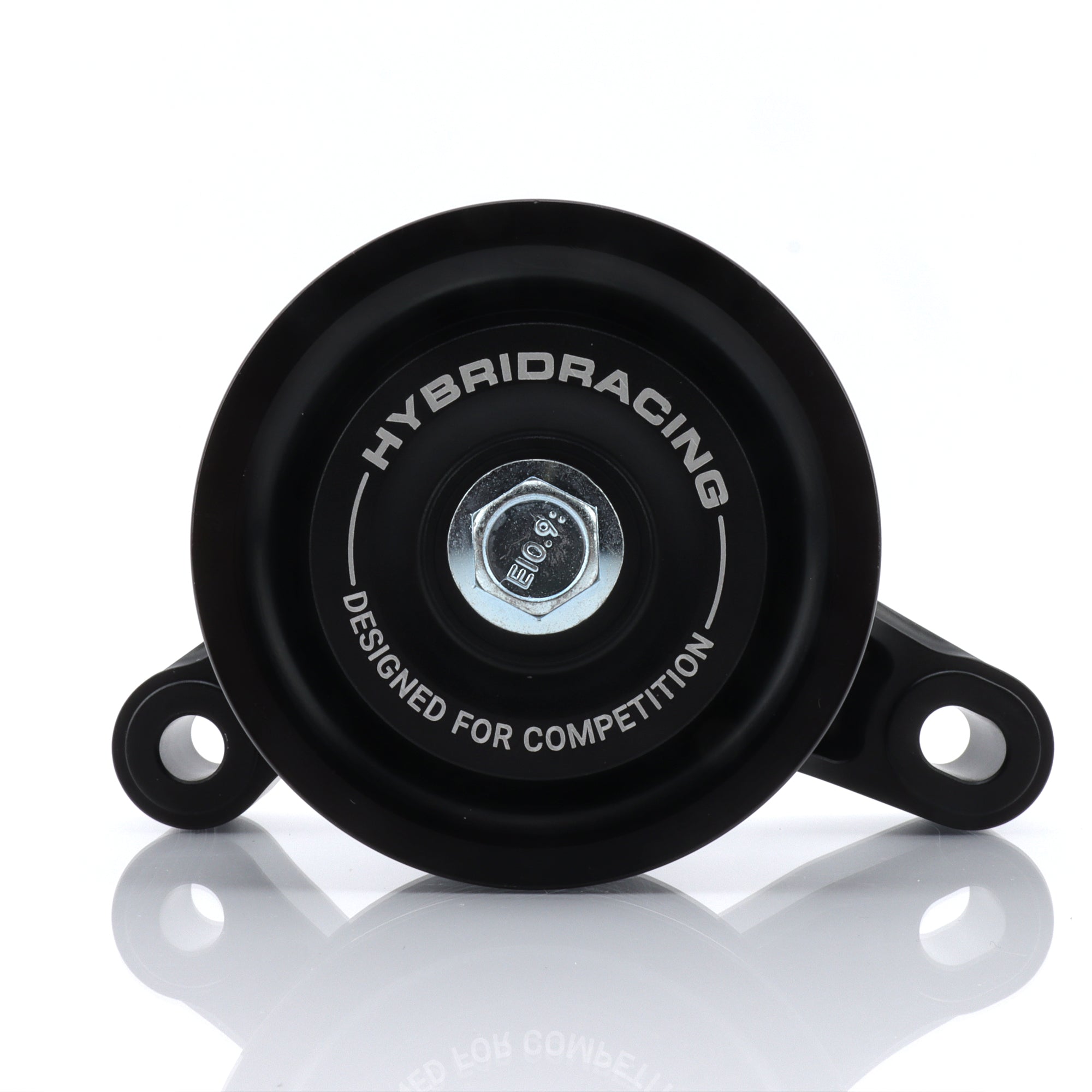

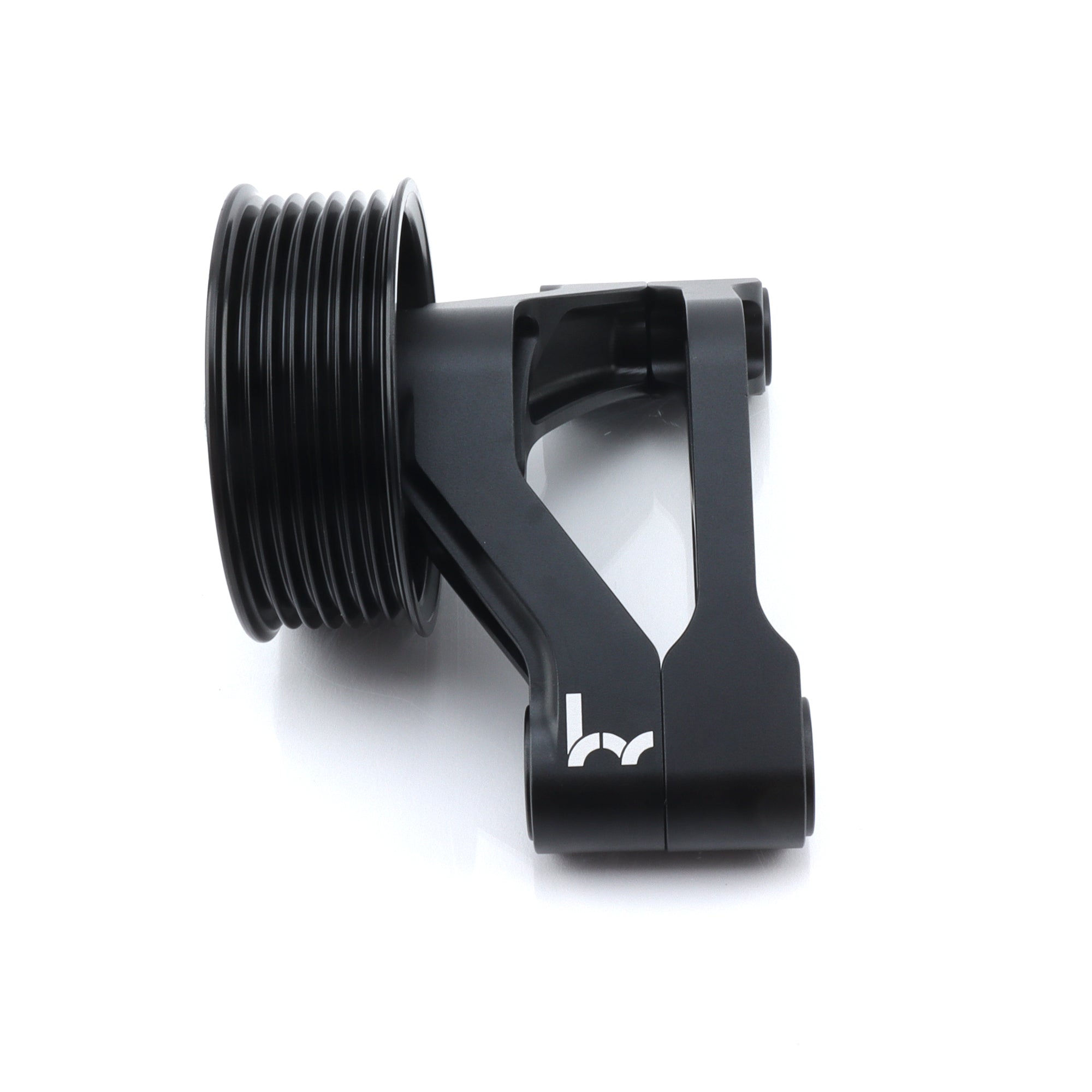

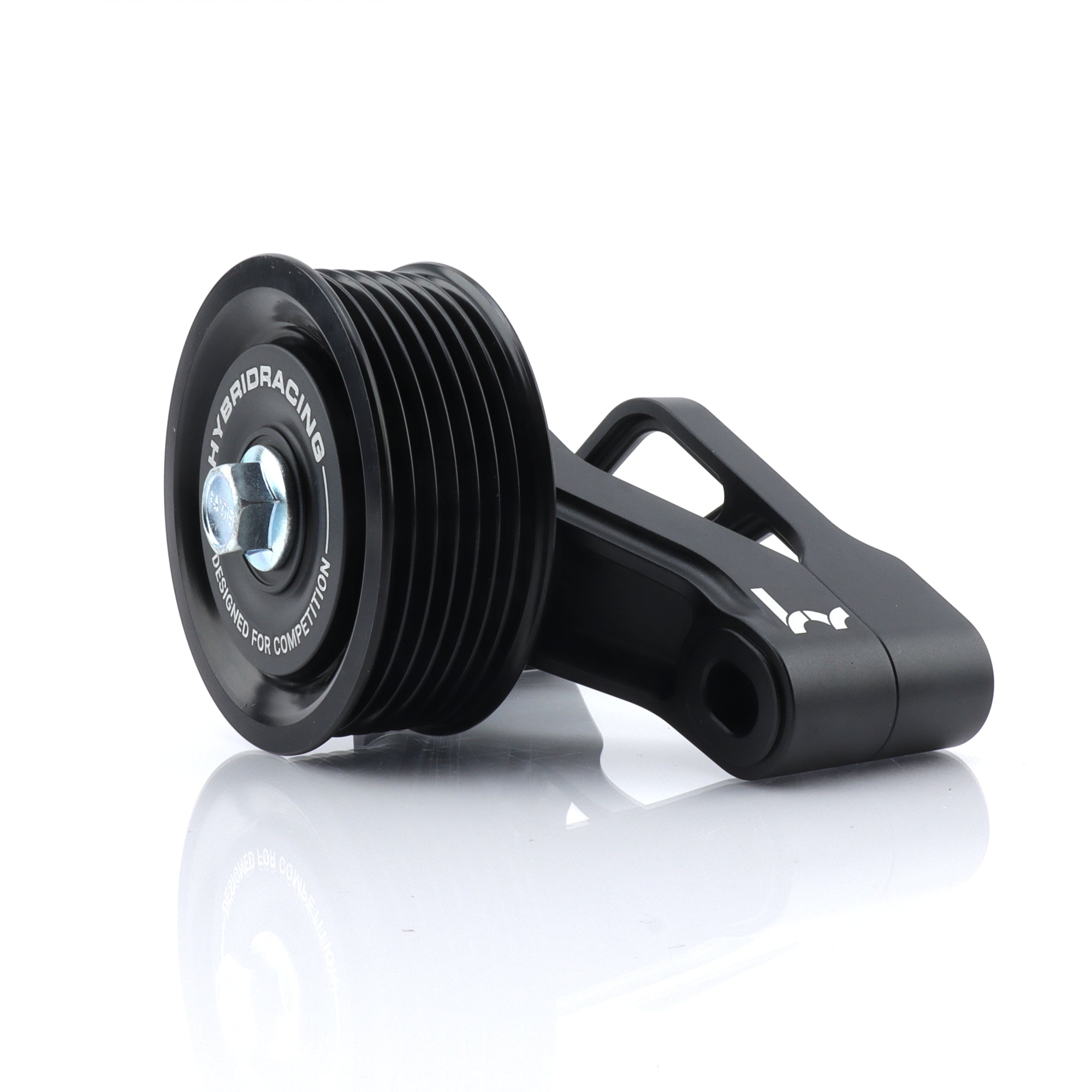

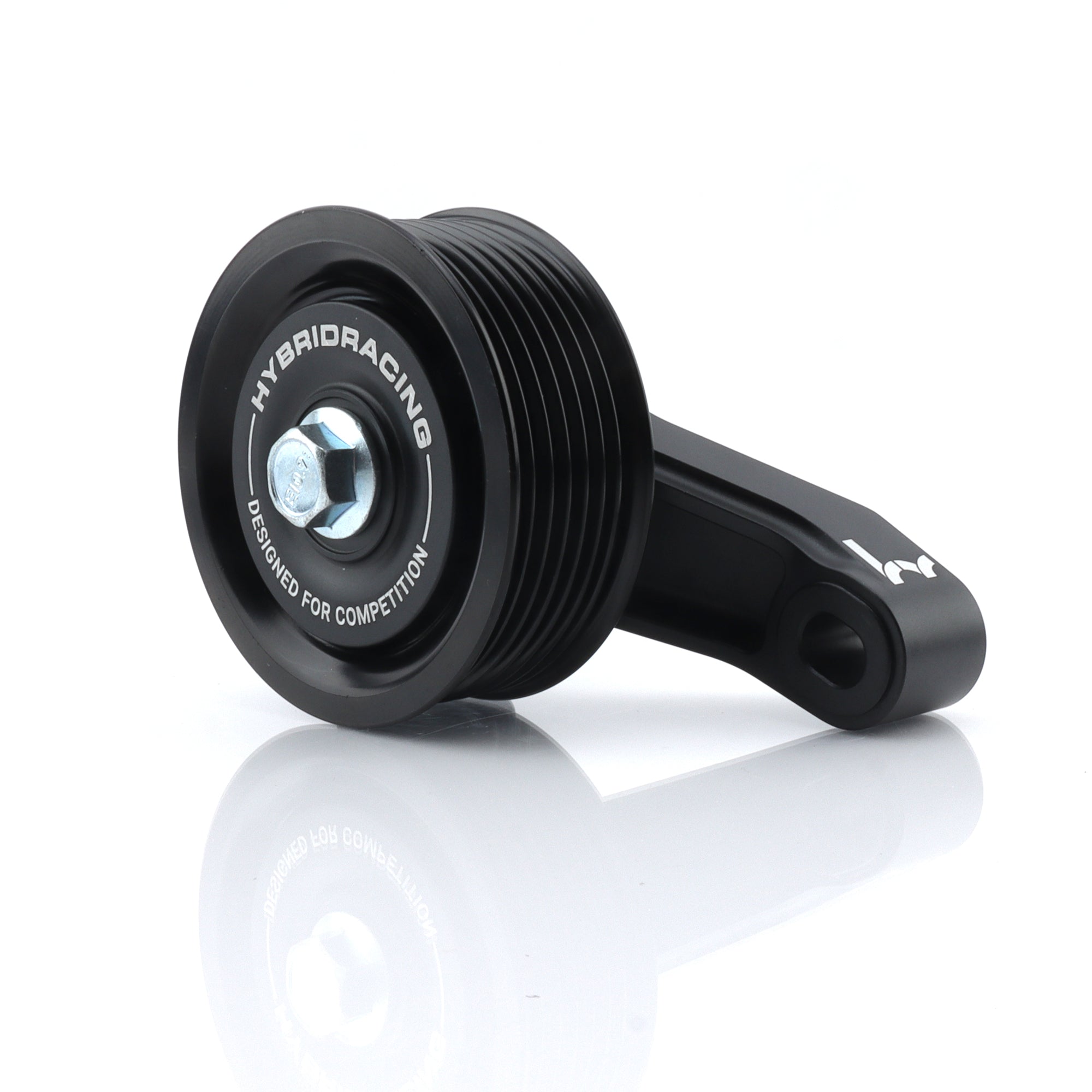

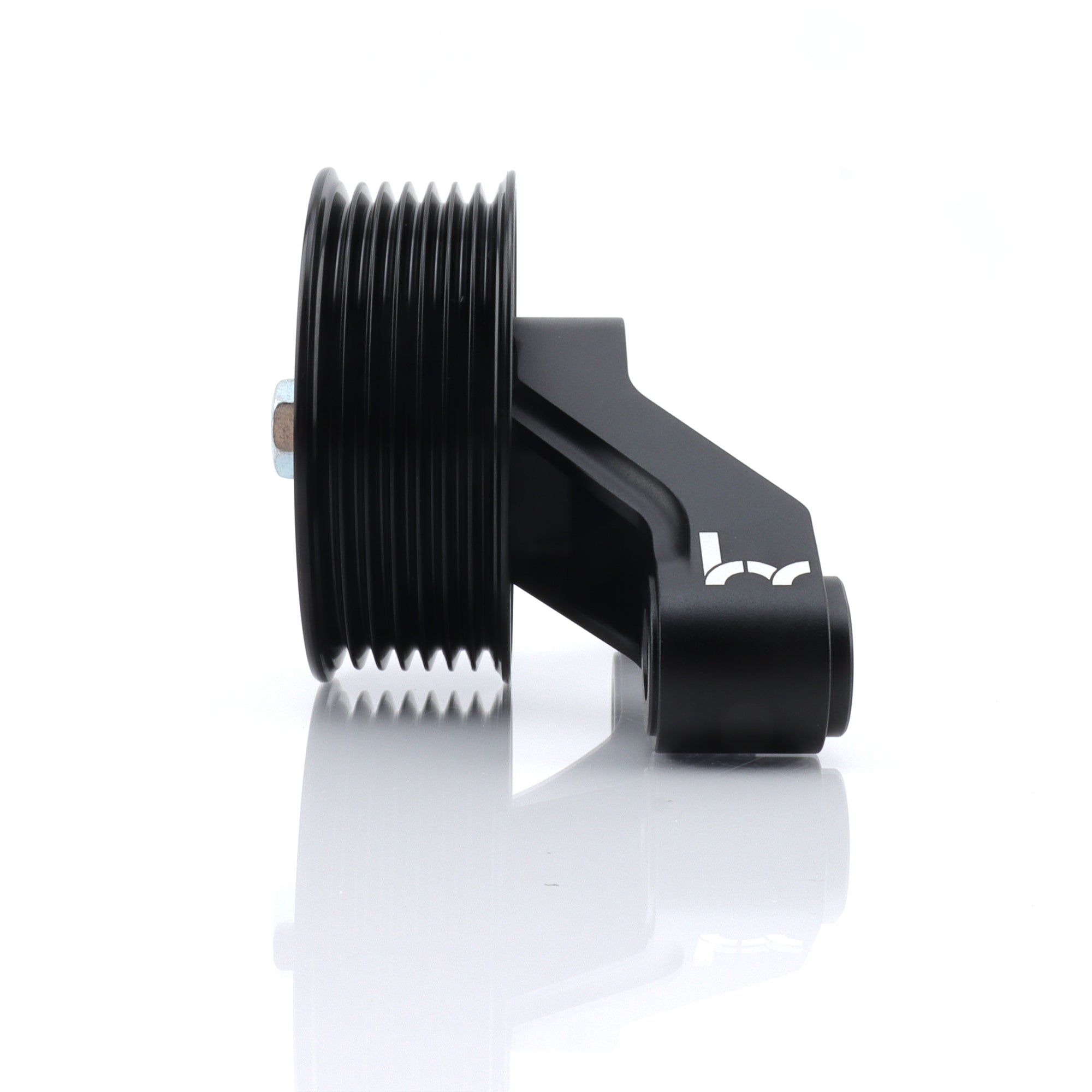

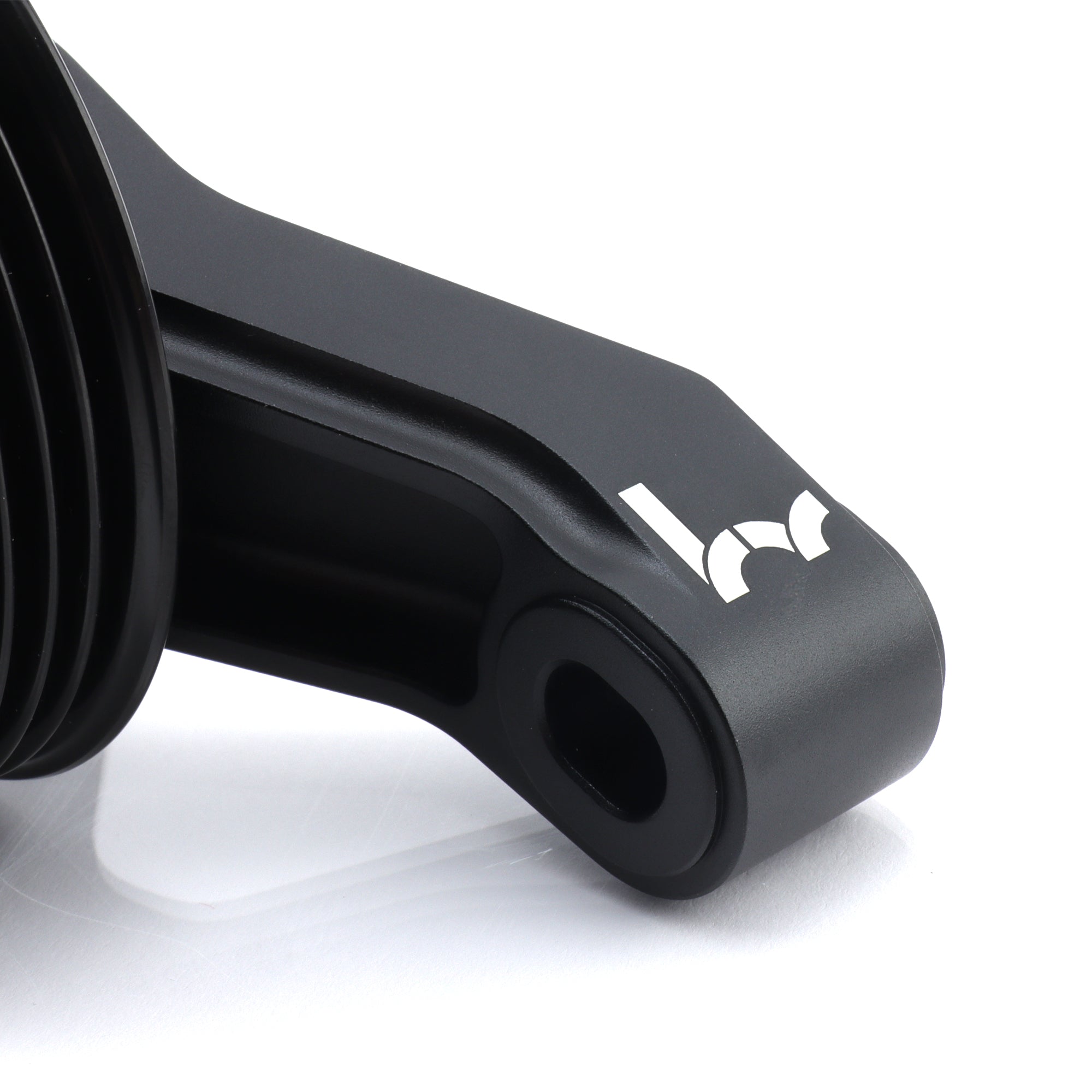

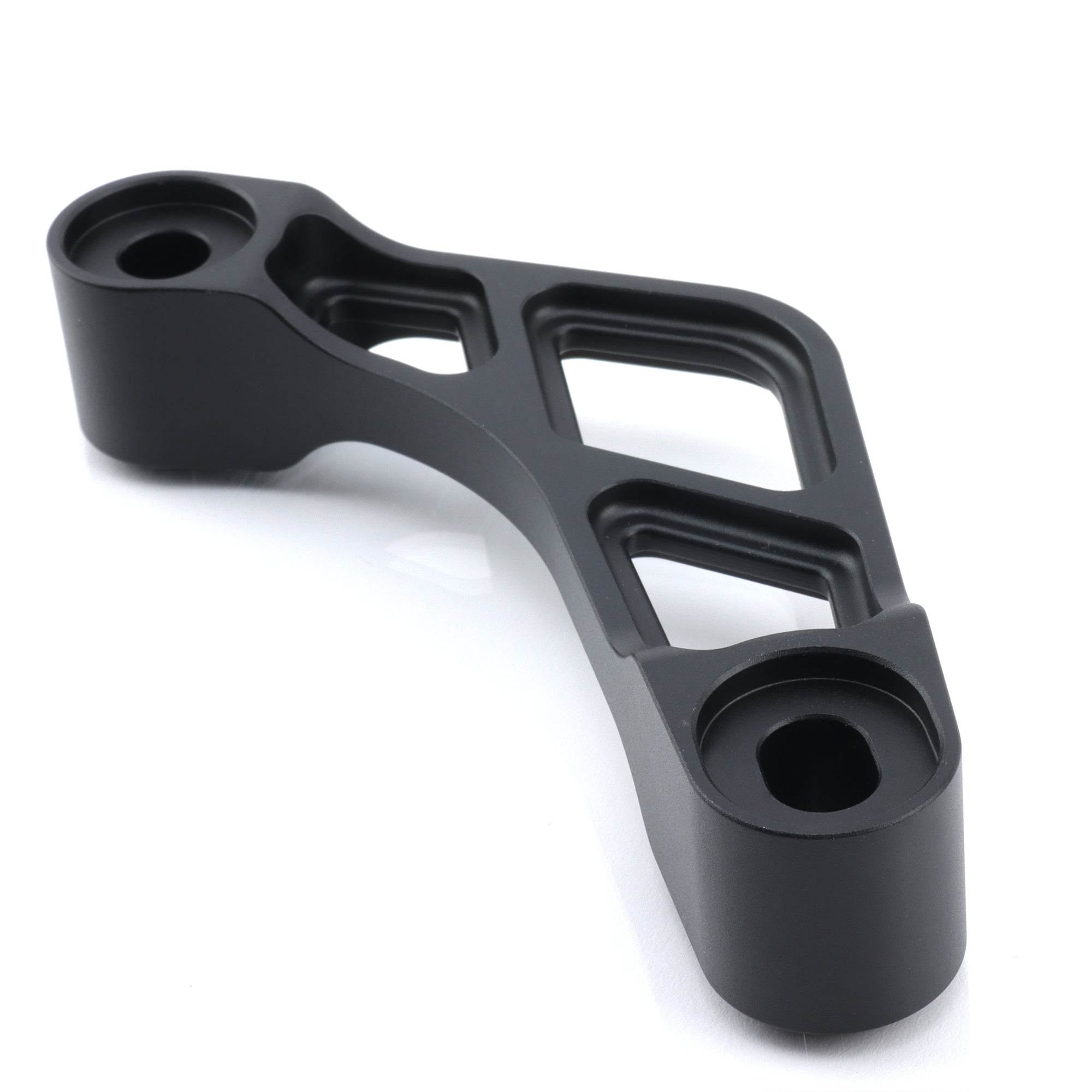

Delete the power-steering pump while retaining the OEM alternator and belt tensioner with this Hybrid Racing idler bracket and pulley setup.

This arrangement retains the factory alternator and automatic tensioner instead of relying on a loosely positioned accessory bracket. Matching the belt to the crank pulley keeps the tensioner in its intended operating window, helping avoid belt slip, excess component load, and charging problems. The lower pulley position also frees valuable hood clearance.

Features & specifications

  • HYB-IDB-01-02: supported K20A/A2/A3/Z1/Z3/Z4 and K24A1/A2/A4/A8 applications

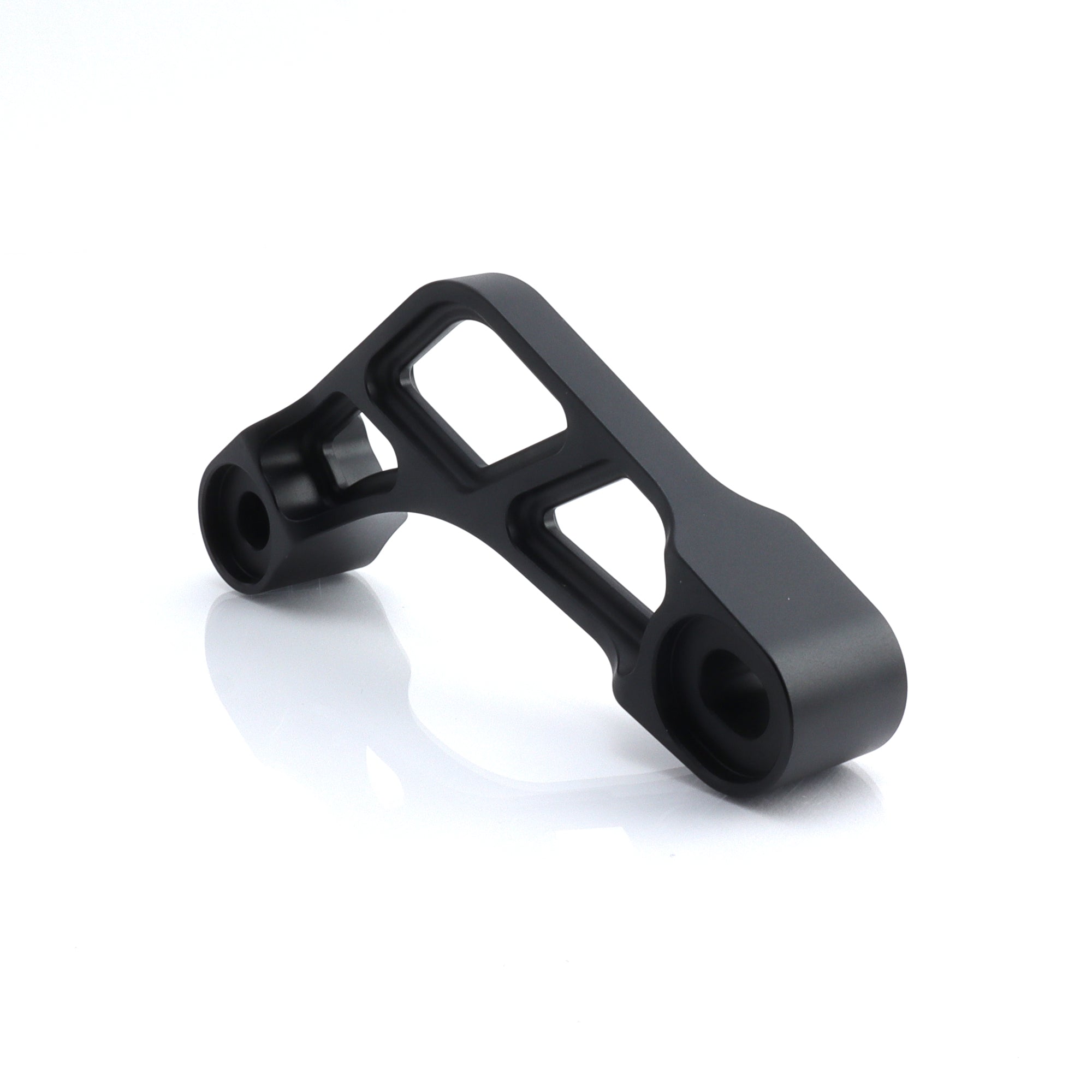

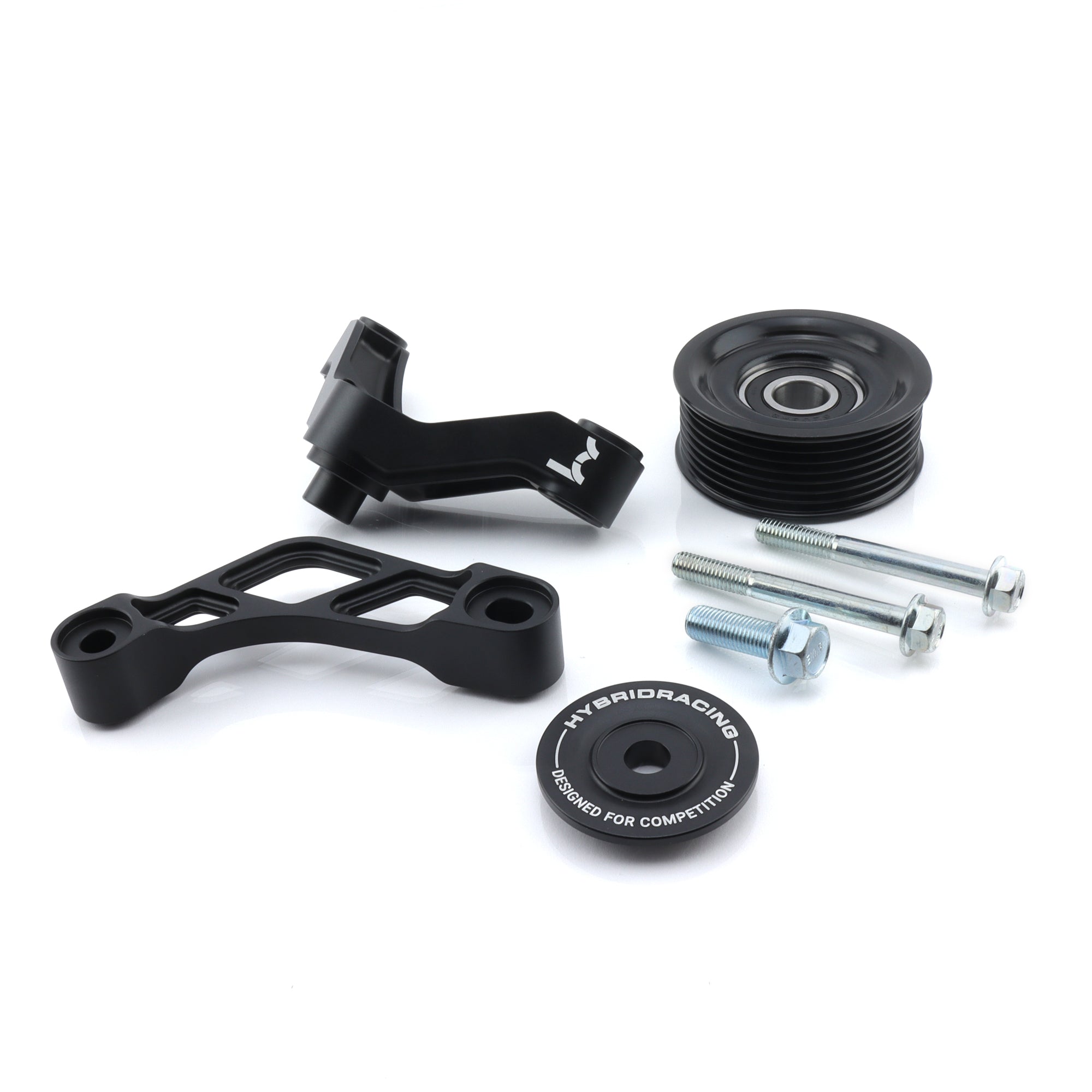

  • HYB-IDB-01-04: JDM K24A with dedicated spacer
  • Improves clearance over the factory power-steering arrangement
  • HYB-IDB-01-02: over 1.5 inches lower than the stock power-steering pulley
  • JDM K24A kit: 1.81 inches lower than the factory pump

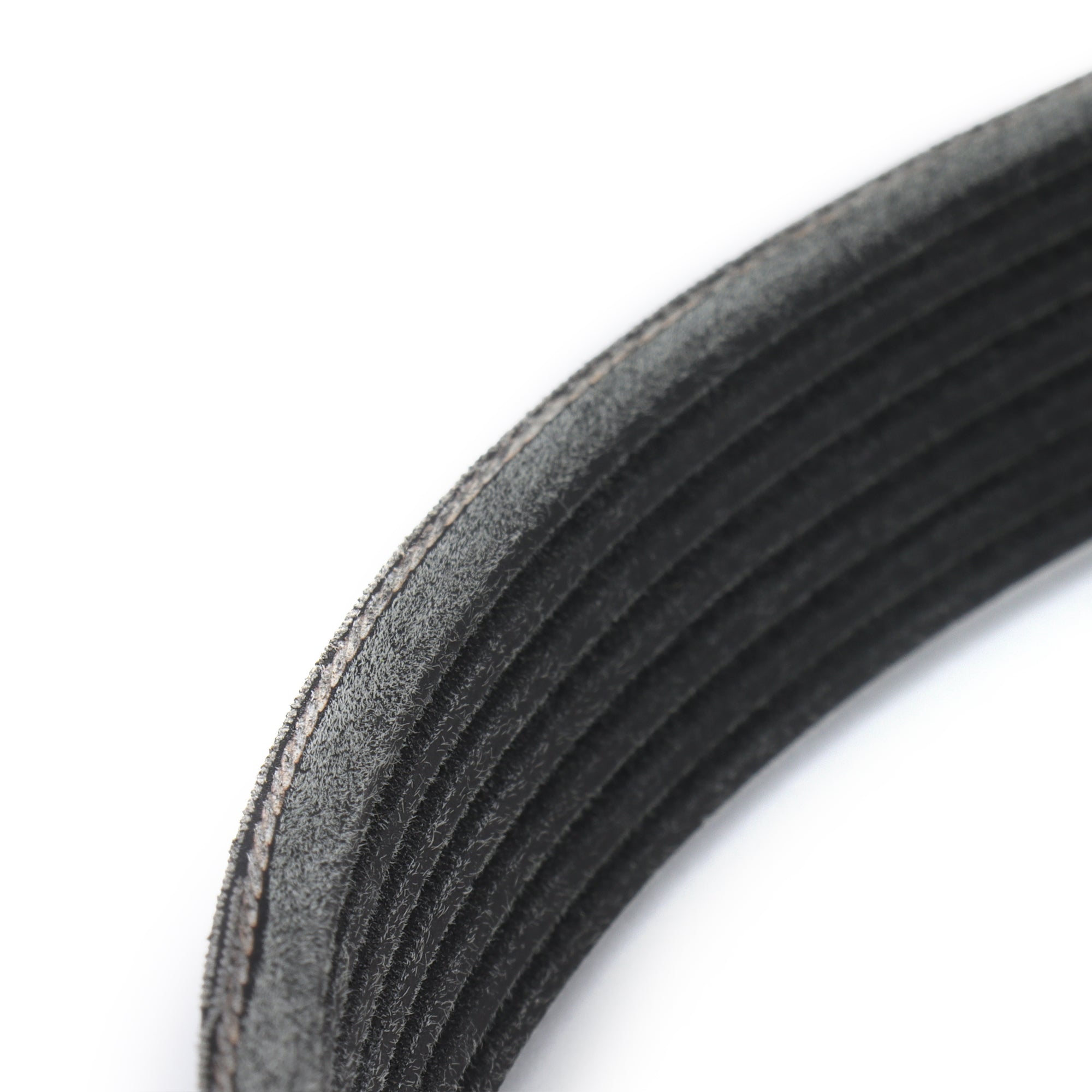

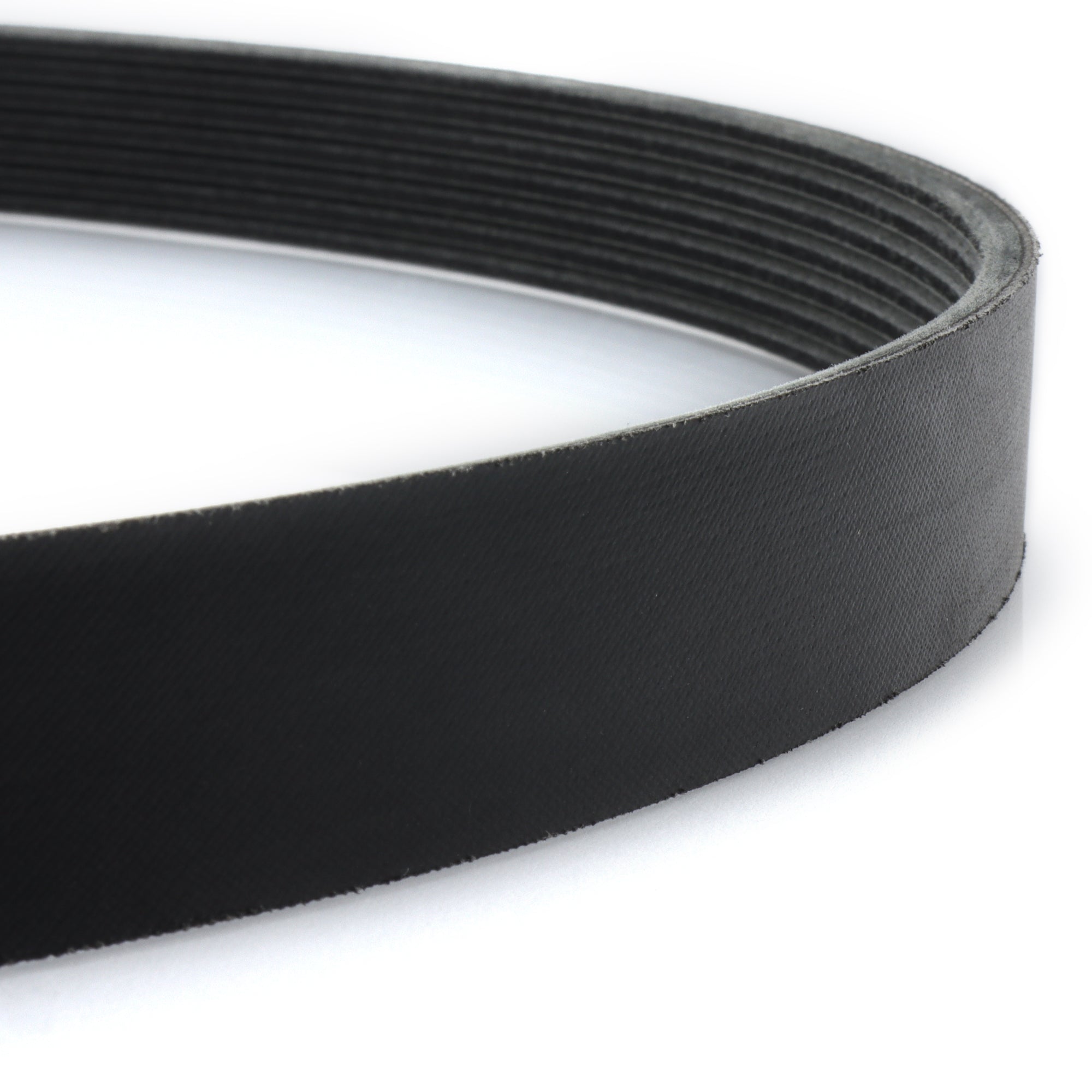

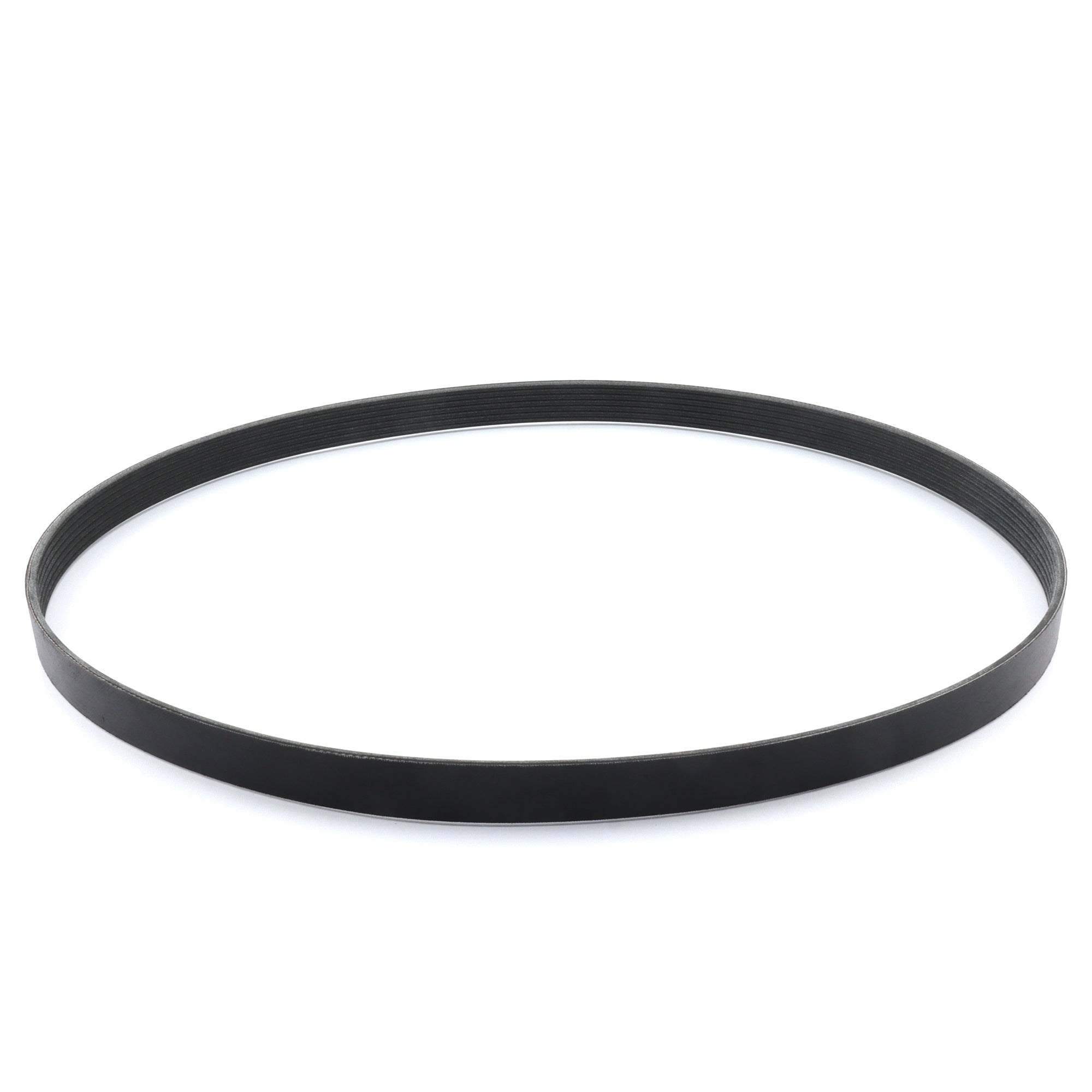

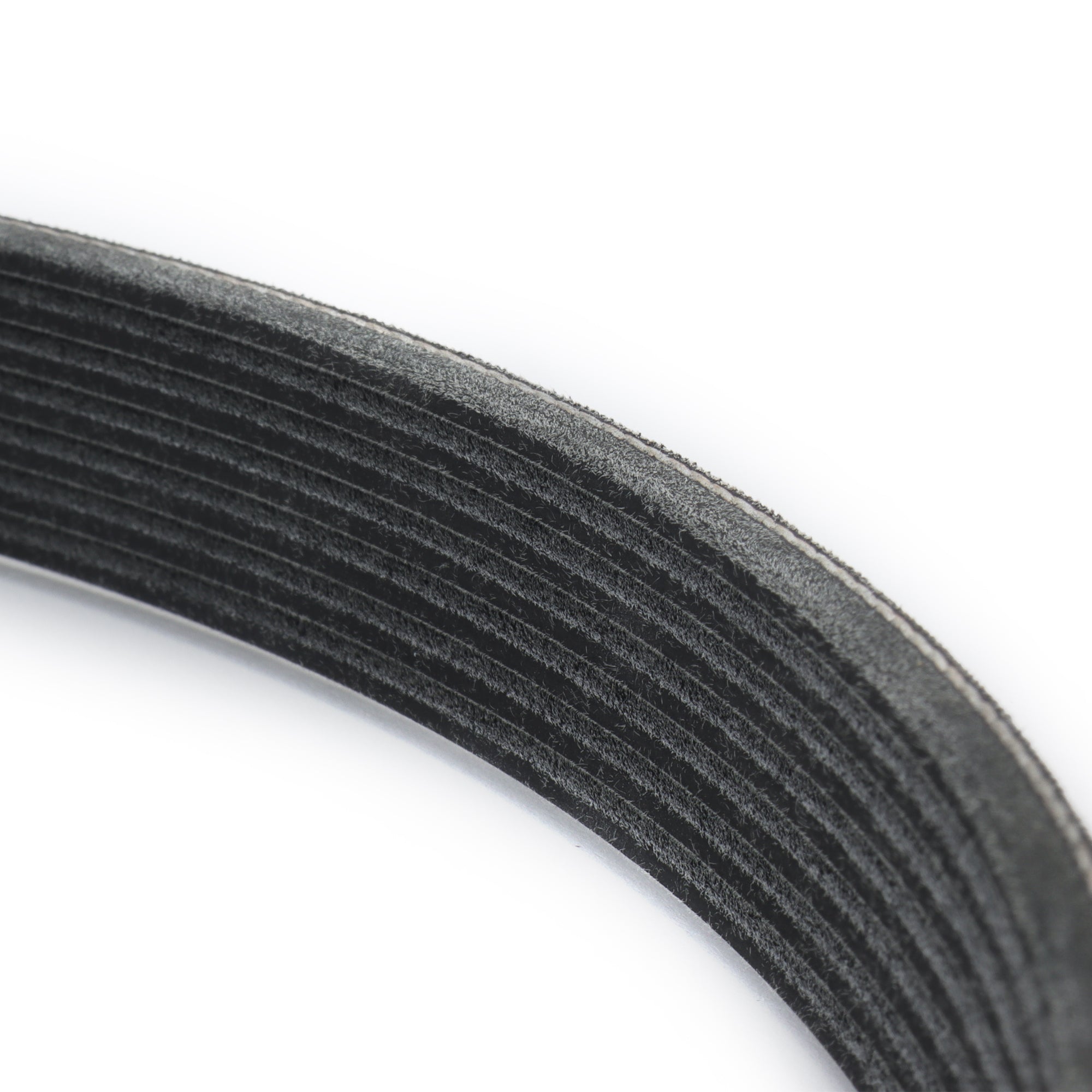

  • Without A/C, HYB-IDB-01-02: 5.8-inch pulley → HYB-BLT-00-01; 6.25-inch → -03; 6.50-inch → -04
  • Without A/C, HYB-IDB-01-04: 6.25-inch pulley → HYB-BLT-00-02; 6.50-inch → -03
  • With A/C, HYB-IDB-01-02 belt references for 5.8 / 6.25 / 6.50-inch pulleys: 7PK1635 / 7PK1650 / 7PK1660
  • With A/C, HYB-IDB-01-04 belt references for 6.25 / 6.50-inch pulleys: 7PK1635 / 7PK1645

Important notes

K24Z3 is excluded from the general kit. A 5.8-inch pulley on the JDM K24A kit requires a custom belt. If the pulley is not listed, source the appropriate custom belt.
