Hybrid Racing K-Series Swap Tucked Fuel System Package (92-00 Civic & 94-01 Integra)

Convert the fuel plumbing on a 1992–2000 Civic or 1994–2001 Integra K-swap with this Hybrid Racing tucked fuel-system package.

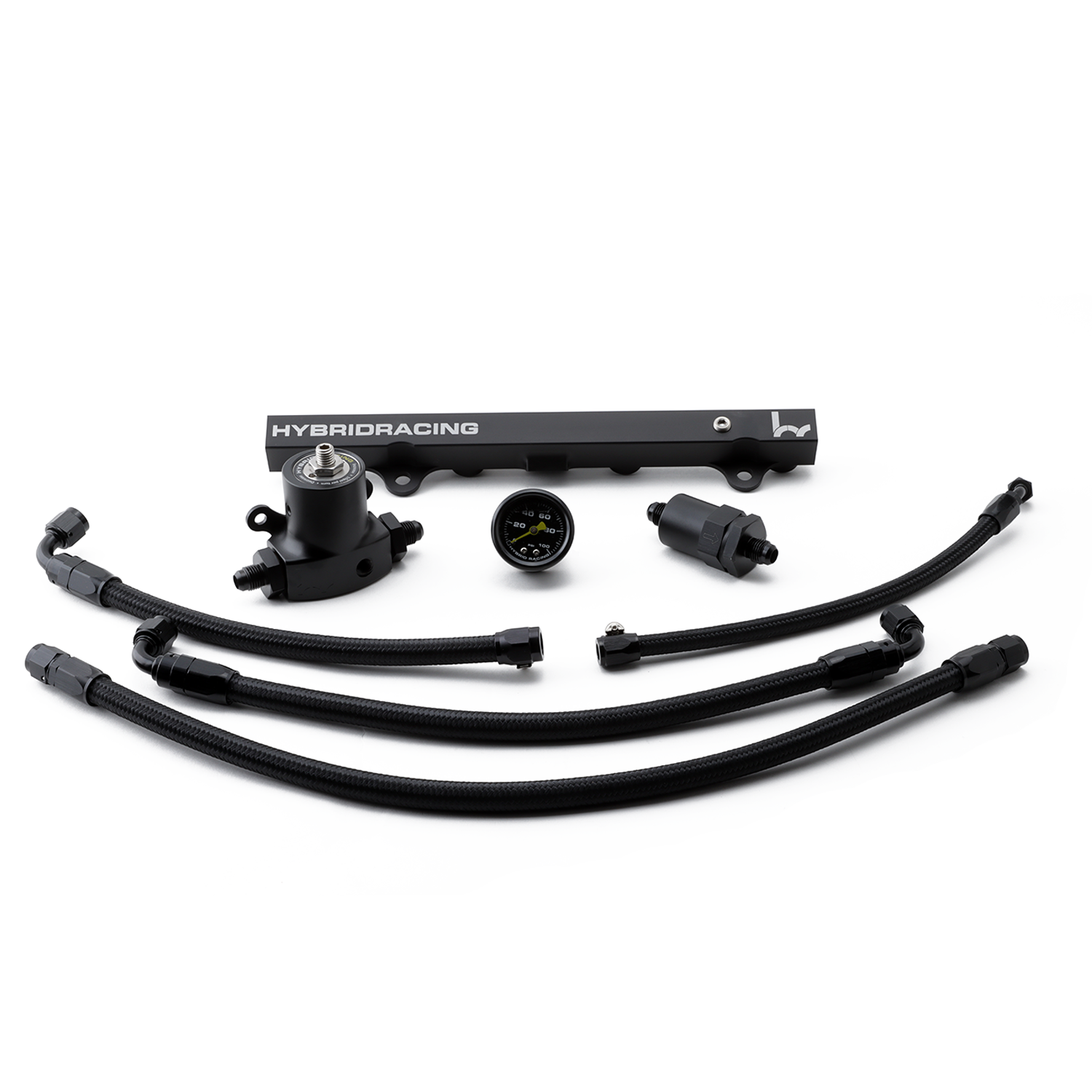

A complete package makes the return-style plumbing, rail, regulation, and pressure monitoring work together. The piston-style regulator damps pressure fluctuations so the gauge is easier to read and set, while the rail offers flexible feed and gauge locations for the way you want to lay out the engine bay.

Features & specifications

• Fuel-line kit with application-specific adapters

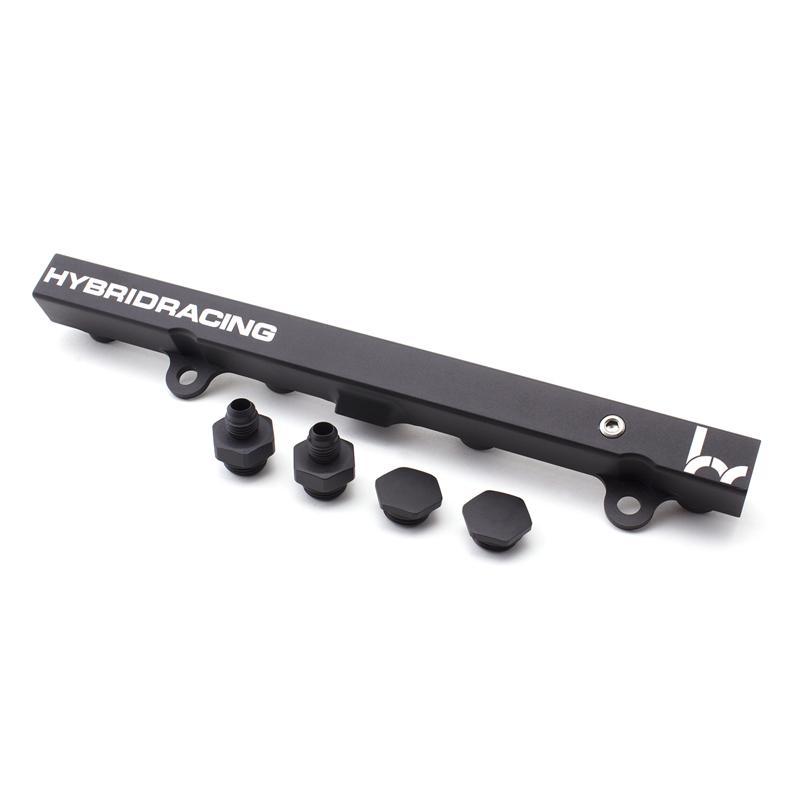

• Hybrid Racing aluminum fuel rail
• Fuel-pressure regulator and gauge
• E85-compatible fuel-line setup

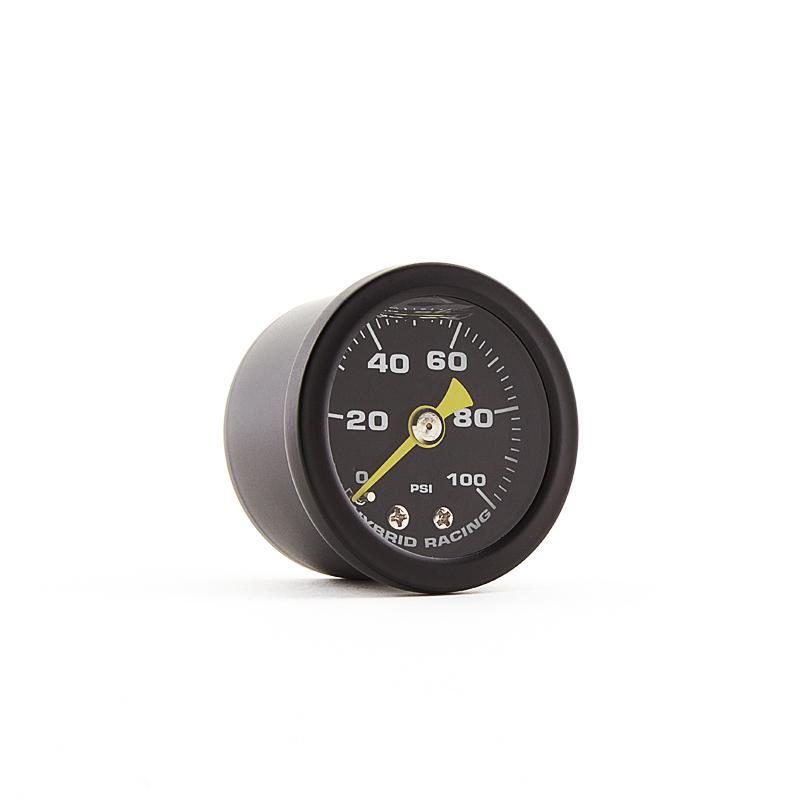

• 0–100 psi pressure gauge
• Regulator fittings include three -8ORB/-6AN fittings, one -6ORB/-4AN fitting, vacuum port, gauge-port plug, bracket, and hardware

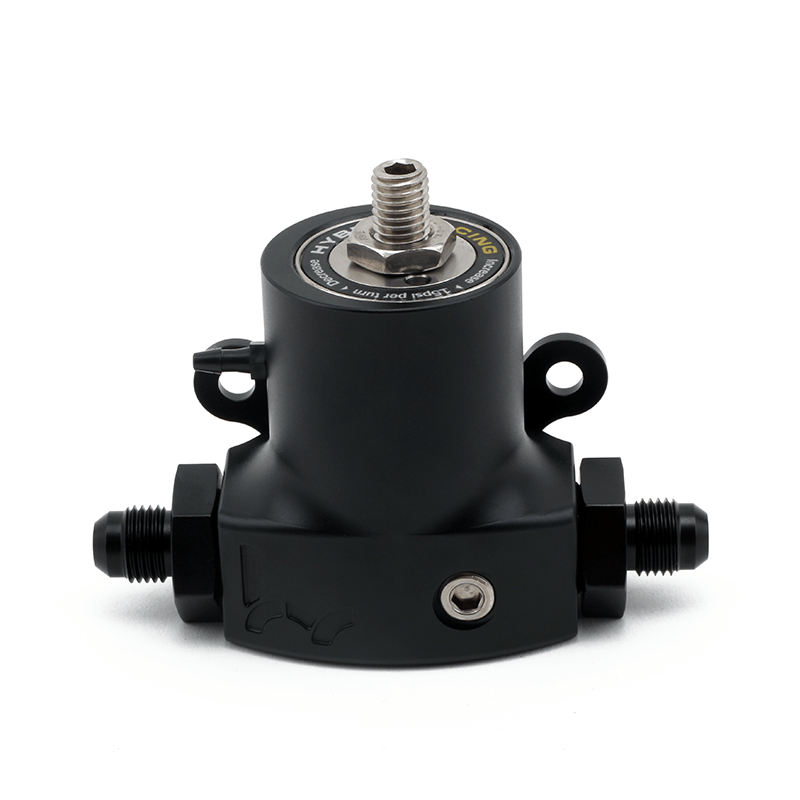

• Regulator uses 6061-T6 aluminum, 304 stainless steel, and redundant O-ring seals
• Regulator accepts up to -8AN plumbing with suitable fittings
• Manufacturer baseline K-swap pressure guidance: approximately 50–52 psi; final setting follows the engine, injectors, and tune

Important notes

The tucked route uses a center-feed rail and relocates the regulator beneath the brake booster. It changes the original fuel-filter arrangement; use the intended filtration setup.
