Hybrid Racing K-Swap Electronics Package (Universal)

Bring the wiring, ECU, and tuning hardware for a custom K20A/A2 swap together in one Hybrid Racing electronics package.

This package connects a K20A/A2 build when there is no chassis-specific plug-and-play solution. The engine and conversion harnesses bring the electrical pieces together, while K-Pro provides calibration and datalogging and the included oxygen sensor supplies the feedback needed for tuning.

Features & specifications

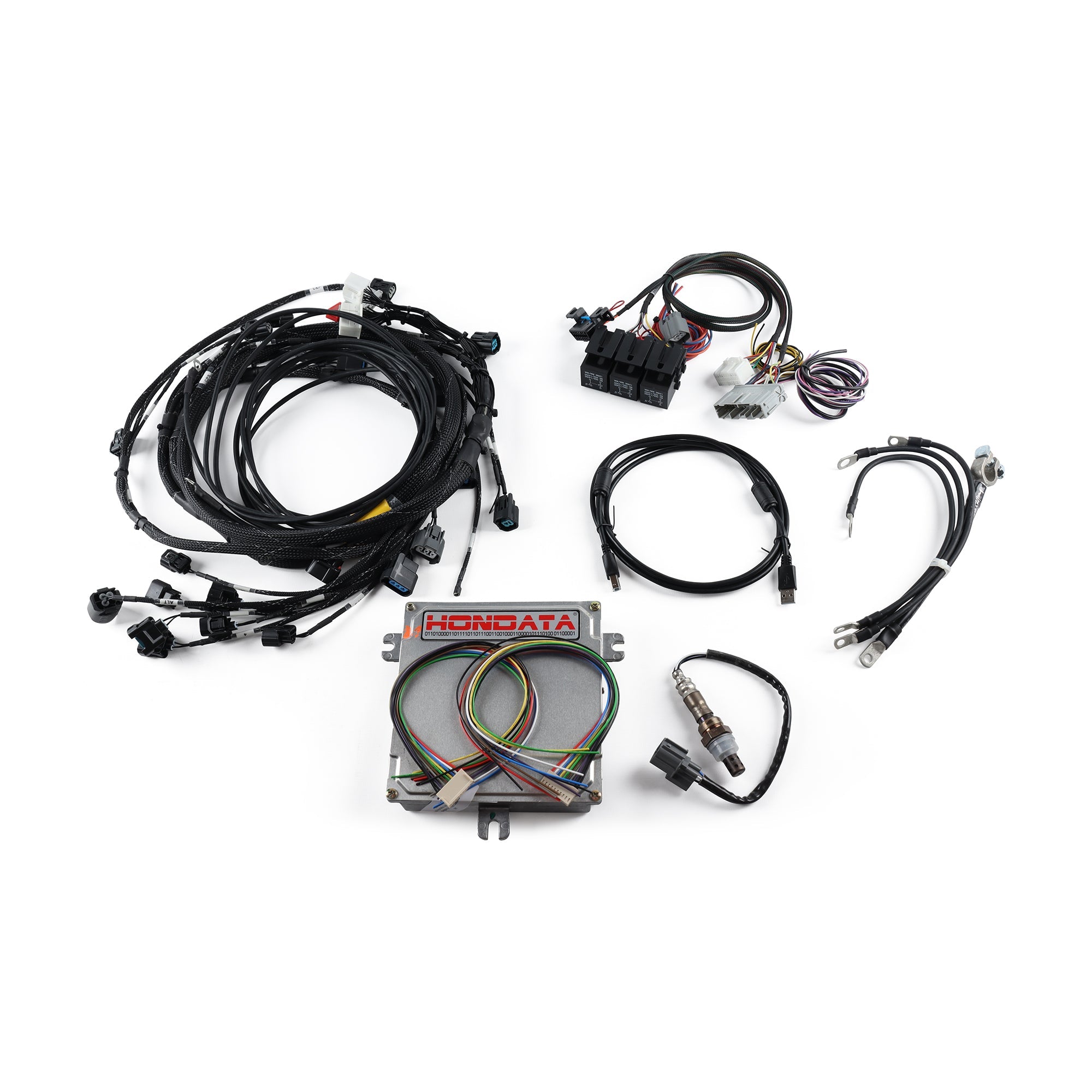

• Rywire K-Series Budget Tucked Harness Version 2 engine harness
• Matching Hybrid Racing conversion harness
• K-swap grounding kit
• Hondata K-Pro V4 ECU configuration
• Denso primary wideband oxygen sensor
• K-Pro supports fuel and ignition adjustment, VTEC/VTC control, and datalogging
• Conversion-harness outputs include tachometer, speedometer, warning lamps, fan, fuel pump, and starter-relay control

Important notes

Requires constant and switched 12V supplies and custom chassis integration. ECU configuration/core requirements depend on the selected K-Pro option. Other engine combinations may require connector or sensor changes.
