Hondata K-Pro V4 with PPA Manual ECU

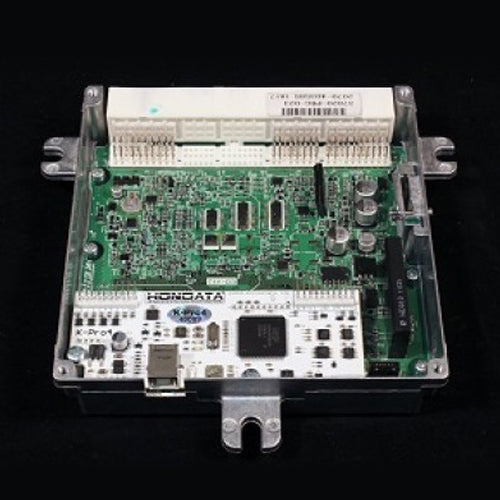

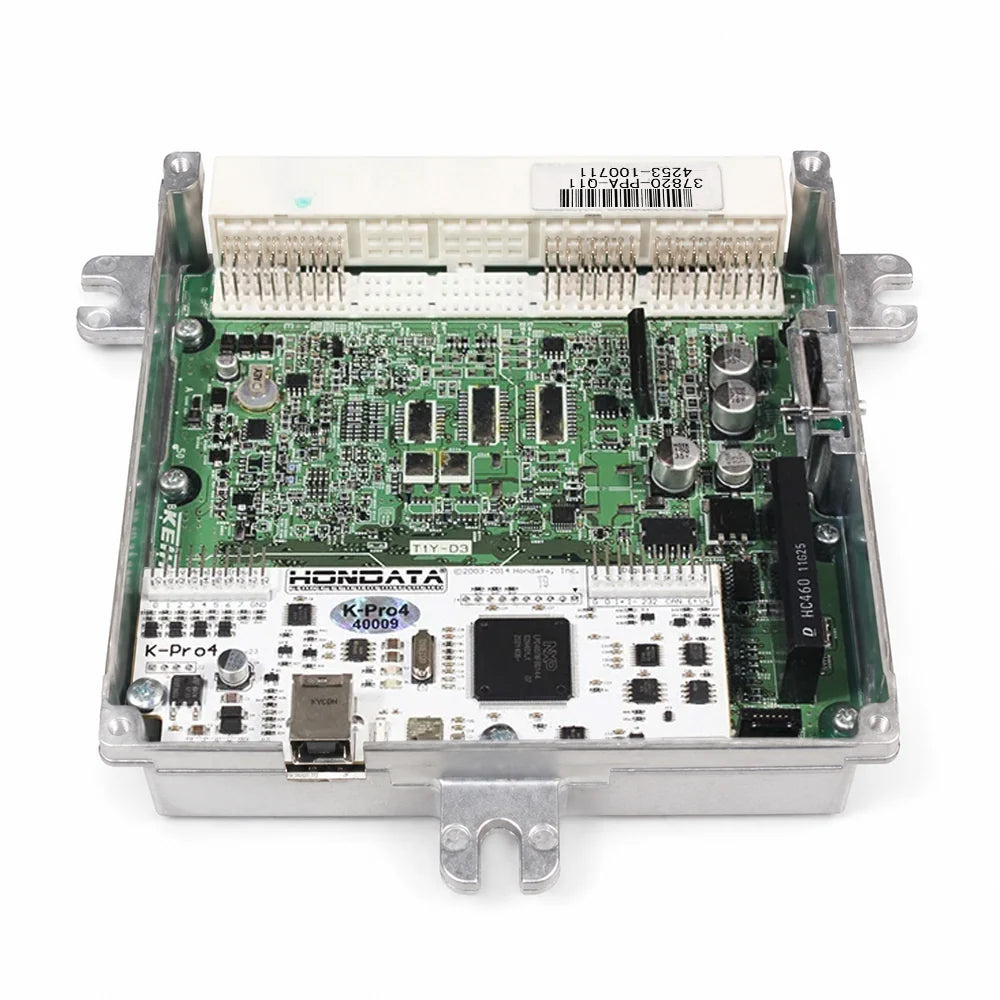

Hondata K-Pro V4 installed in a compatible manual-transmission PPA ECU for K-Series engine-swap applications.

Supported manual PPA ECUs can be used as K-Pro donor ECUs, giving K20 and K24 swap builds another OEM ECU option when the exact ECU part number and wiring are appropriate for the application.

What's Included

• Hondata K-Pro V4.
• Compatible manual PPA ECU with K-Pro installed.

Hondata K-Pro V4 Features

• Programmable fuel, ignition, VTC/cam-angle and other engine parameters through Hondata KManager.
• USB and Bluetooth connectivity for tuning and datalogging.
• 64 Mbit onboard datalogging memory with up to 100 Hz onboard logging.
• Dedicated ethanol-sensor and alternate speed-sensor inputs.
• RS232 and CAN outputs for supported dash/data applications.
• Live tuning and advanced engine-protection functions.

Hondata notes that some functions depend on ECU/calibration choice. In particular, K-Pro V4 flex-fuel operation requires a PRB or PRA calibration.

Compatibility Note

PPA compatibility is part-number and market specific. Vehicle-speed, reverse-lockout, oxygen-sensor and chassis wiring requirements depend on the engine, transmission, harness and vehicle. Verify the complete swap combination before ordering.

Authorized Hondata Dealer & K-Pro Certified Installer

Genuine Hondata hardware, professional ECU installation, and custom dyno tuning from our Atlanta-area facility. Authorized Dealer  |  K-Pro Certified Installer
